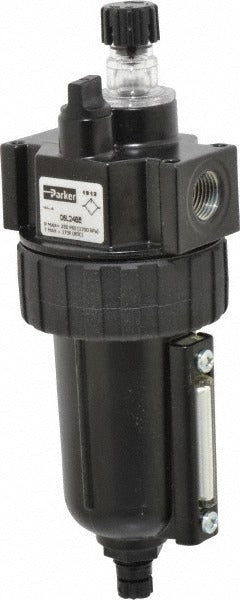

Parker 06L24BE Air Lubricator 60 Cfm 3/8 Npt Zinc

Product Description

The PARKER 06L24BE is an intermediate mist-type compressed air lubricator designed to deliver a controlled oil mist into downstream pneumatic tools, cylinders, and valves. Part of Parker's Series 06L, this unit features a zinc body and a metal bowl rated for continuous service in compressed air systems. It handles up to 60 CFM of airflow through a 3/8 inch NPT port, making it well suited for moderate-duty pneumatic circuits. A built-in sight glass lets technicians confirm oil feed without interrupting service. Licensed pipefitters and pneumatic system technicians are the typical installers for this component.

The 06L24BE is intended for use in intermediate-stage pneumatic filtration-regulation-lubrication (FRL) assemblies in industrial, commercial, and light manufacturing environments. Its modular connection feature allows it to integrate directly with compatible Parker Series 06L filter and regulator units to form a complete FRL bank. The manual drain requires periodic attention during maintenance intervals. Minimum working temperature is 32 degrees F, making it appropriate for indoor or climate-controlled installations.

Key Features

• Mist-type lubrication for downstream pneumatic tools and actuators
• 60 CFM rated airflow through a 3/8 inch NPT port
• Zinc body construction for corrosion resistance in compressed air service
• Metal bowl with integrated sight glass for visual oil-level monitoring
• Modular connection supports inline FRL assembly with Series 06L components
• Nitrile seals compatible with standard compressor oils
• Manual drain for controlled oil bowl servicing

Compatibility

Designed for use within the Parker Series 06L FRL family, with modular connections for inline assembly alongside compatible Series 06L filters and regulators.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or licensed pipefitter. Depressurize and lock out the compressed air supply completely before connecting or servicing this lubricator. Use thread sealant rated for compressed air service on all NPT connections and verify there are no leaks before returning the system to operation. Mount in an upright vertical orientation to ensure proper bowl function and oil feed.
