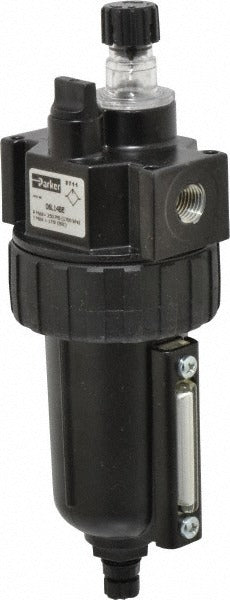

Parker 06L14BE Air Lubricator 40 Cfm 1/4 Inch Npt

Product Description

The PARKER 06L14BE is an intermediate mist-type compressed air lubricator designed to inject a fine oil mist into a compressed air supply line, protecting downstream pneumatic tools, cylinders, and valves from premature wear. Built for inline installation in industrial and commercial pneumatic systems, this unit handles up to 40 CFM of airflow through a 1/4 inch NPT port. The zinc body and metal bowl provide solid durability in shop and production environments. A built-in sight glass allows technicians to monitor oil feed rate without interrupting system operation. The manual drain and modular connection design make servicing and integration into filter-regulator-lubricator (FRL) assemblies straightforward for industrial maintenance personnel.

This lubricator is suited for use in compressed air systems requiring consistent oil delivery to pneumatic actuators, air motors, and tooling. It is a Series 06L unit, which is a modular design that supports inline assembly with compatible Parker filter and regulator components. Typical installations are found in manufacturing cells, maintenance shops, and light industrial process lines where 1/4 inch NPT compressed air circuits are common. A minimum working temperature of 32 degrees F makes it appropriate for standard indoor and climate-controlled environments.

Key Features

• 40 CFM flow capacity through a 1/4 inch NPT port with NPT end connections
• Mist-type lubrication delivers consistent oil dispersion to downstream pneumatic components
• Zinc body and metal bowl construction for durable service in industrial settings
• Integrated sight glass for visual oil feed rate monitoring without line shutdown
• Manual drain for controlled oil bowl servicing
• Modular connection supports FRL inline assembly with compatible Series 06L components
• Nitrile seals compatible with standard compressor oils and typical shop air conditions

Compatibility

Designed as an OEM-style inline lubricator for compressed air systems using 1/4 inch NPT connections. Modular connection design supports assembly with compatible Parker Series 06L filter and regulator components.

Installation Notes

Installation is typically performed by a qualified industrial maintenance technician or pipefitter. Depressurize and lockout the compressed air supply before installing or servicing this unit. Ensure airflow direction matches the arrow or inlet/outlet markings on the body. Fill the bowl only with lubricant compatible with nitrile seals and the downstream pneumatic equipment manufacturer recommendations.
