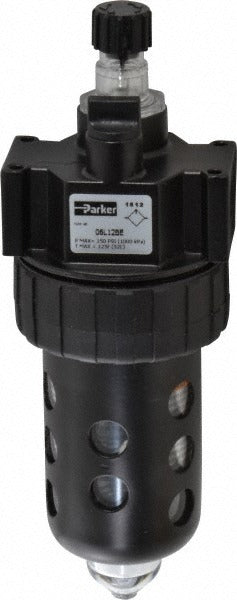

Parker 06L12BE Compressed Air Lubricator 40 Cfm 1/4 Npt

Product Description

The PARKER 06L12BE is an intermediate mist lubricator designed for compressed air systems. It meters oil into the airstream to protect downstream pneumatic tools, cylinders, and valves from wear and corrosion. Rated at 40 CFM, the 06L12BE fits into 1/4 inch NPT lines and is built around a zinc body with a polycarbonate bowl and metal bowl guard. A built-in sight glass lets technicians confirm oil mist delivery without disassembling the unit. This lubricator is part of the Parker Series 06L and supports modular connection for building out filter-regulator-lubricator assemblies.

The 06L12BE is suited for light industrial and commercial compressed air applications where pneumatic tools or actuators require continuous lubrication. It installs in-line ahead of tools, air motors, or directional control valves that are not self-lubricating. The 1/4 inch NPT port size makes it appropriate for smaller pneumatic circuits operating at moderate flow rates up to 40 CFM. Technicians working on assembly lines, maintenance rigs, or shop air systems will find this lubricator a direct fit into modular FRL (filter-regulator-lubricator) setups.

Key Features

• 40 CFM flow capacity through a 1/4 inch NPT port
• Zinc body construction with polycarbonate bowl and metal bowl guard for durability and visibility
• Integrated sight glass confirms active oil mist delivery at a glance
• Nitrile seals rated for operation down to 32 degrees F (0 degrees C)
• Modular connection design compatible with Series 06L filter and regulator components
• 2.9 oz bowl capacity with mist-type lubrication output

Compatibility

Designed as an OEM-style replacement or direct addition for compressed air systems requiring a 1/4 inch NPT intermediate mist lubricator; compatible with Parker Series 06L modular FRL configurations.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or pipefitter. Depressurize and lock out the compressed air supply before installing or servicing this lubricator. The unit must be installed in the correct airflow direction as indicated on the body. Use thread sealant appropriate for compressed air service on NPT connections and verify all fittings are leak-free before returning the system to pressure.
