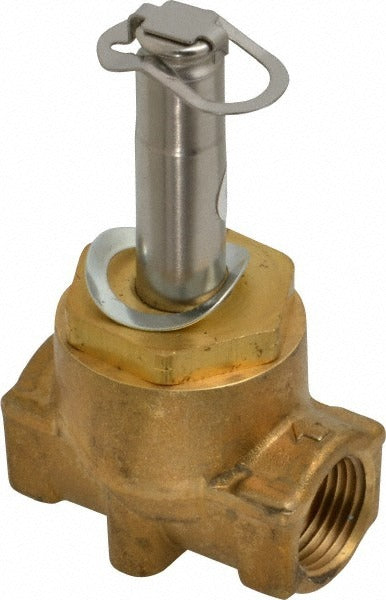

Parker 06F25C2122CAF Two-way Solenoid Valve 3/8 Inch Npt

Product Description

The PARKER 06F25C2122CAF is a two-way, piloted diaphragm solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and commercial systems. It features a 3/8 inch NPT port, a brass body, and an NBR seal, making it well-suited for a wide range of compatible media. The valve operates in a normally closed state, meaning it requires electrical actuation to open. With a Cv factor of 1.2, a maximum working pressure of 300 psi, and multi-voltage coil compatibility, this valve fits demanding process control applications. Licensed HVAC technicians, plumbers, and industrial maintenance professionals install this type of valve.

This valve is used in residential and commercial systems where precise on/off fluid or gas control is required. Typical applications include HVAC water control circuits, compressed air lines, light oil distribution, and general process piping. It accepts multiple voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, giving it broad compatibility across control panel configurations. The coil assembly is not included with this valve body and must be sourced separately. ASCO Number 8210G21 is referenced in the product specifications.

Key Features

• Two-way piloted diaphragm design with normally closed default state
• 3/8 inch NPT port with brass body for corrosion resistance in fluid and gas service
• NBR seal material rated for fluids, gases, and light oils
• Maximum working pressure of 300 psi with a minimum operating pressure differential of 5 psi
• Cv factor of 1.2 for predictable flow performance in sized systems
• Multi-voltage compatible: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• CSA Certified, UL Listed, and NEMA 4X rated for wet or wash-down environments

Compatibility

Rated for use with fluids, gases, and light oils. Compatible with systems requiring a 3/8 inch NPT two-way normally closed solenoid valve. Referenced ASCO Number 8210G21 may indicate cross-reference applicability; verify coil and voltage requirements against the specific system before installation.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician. Shut off all fluid supply and de-energize the control circuit before servicing or replacing the valve. Note that solenoid coils are not included and must be matched to the correct voltage before energizing. Thread connections should be made with appropriate thread sealant per applicable plumbing or piping codes; do not overtighten brass fittings.
