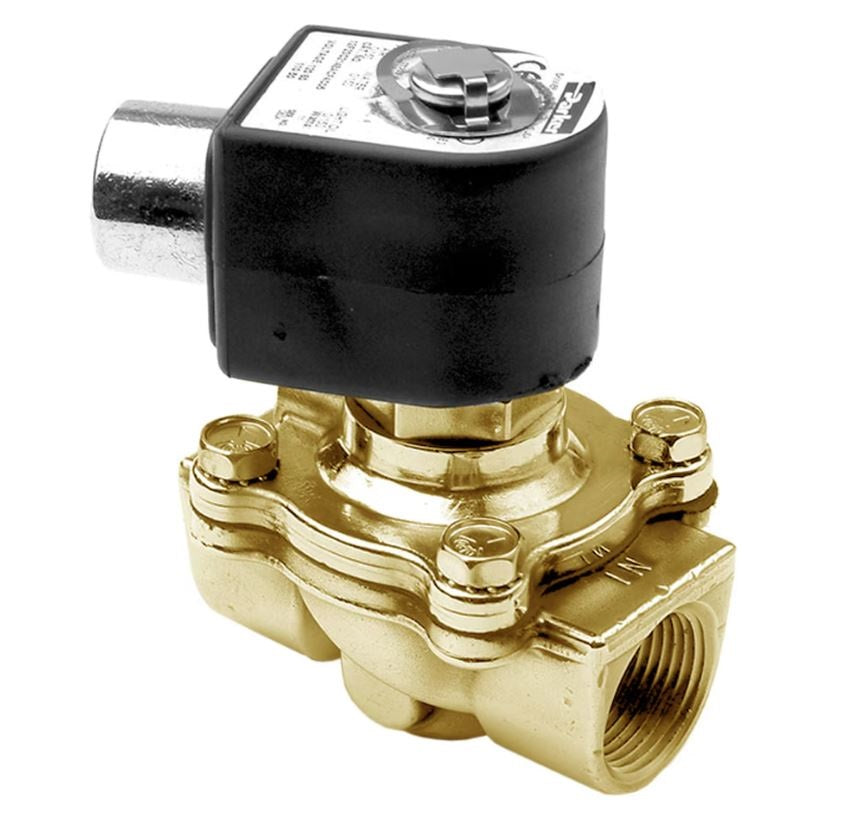

Parker 06F23O2140ACF4C05 2-Way Normally Open Solenoid Valve

Product Description

The Parker 06F23O2140ACF4C05 is a 2-way normally open solenoid valve suitable for various applications involving air, liquids, and gases. This valve, known for its reliability, features a brass body and NBR seals, ensuring durability in multiple environments. It works effectively in material transfer, vending machines, molding, instrumentation, and water treatment.

• 2-Way Normally Open configuration
• Brass body and NBR seals
• Compatible with air, water, and light oil media

Product Highlights

This solenoid valve is designed with a direct lift mechanism, allowing for quick response in opening and closing operations.

Product Information

Standard Information

• Brand: Parker - Fluid Control Division
• MPN: 06F23O2140ACF4C05

Technical Specifications

• Valve Type: 2-Way
• Configuration/Type: 2 Way
• Function: Normally Open
• Actuation: Hung Diaphragm
• Body Material: Brass
• Seal Material: NBR
• Media: General-purpose for Air, Liquids & Gases
• Port Size: 3/8
• Port Type: NPT
• Orifice Size: 5/8 inch
• Number of Ports: 2
• Maximum Pressure Differential: 150 psi
• Minimum Pressure Differential: 0 psi
• Maximum Fluid Temperature: 150.0 °F
• Minimum Fluid Temperature: 0 °F
• Fluid Temperature: 180 °F
• Ambient Temperature: 32 °F - 77 °F
• Input Voltage: 120/60 VAC
• Power Consumption: 11 Watts
• Coil Type: 1/2 NPT Conduit with Leads (Including Ground Lead)
• Coil Terminations: 18 INCH LEADS
• Coil Protection Mode: Class F
• Coil Insulation: Class F
• Flow Coefficient/Rating: 3 Cv
• Enclosure: 1/2 INCH CONDUIT
• Ingress Protection Rating: NEMA 4, 4X
