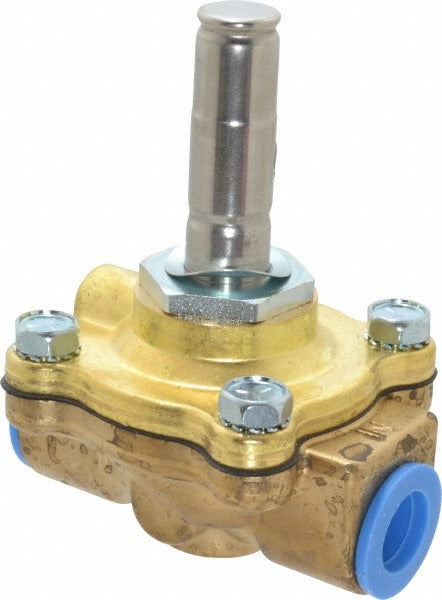

Parker 06F23O2140ACF 2-way Solenoid Valve 3/8 Inch Npt

Product Description

The PARKER 06F23O2140ACF is a 2-way, piloted diaphragm solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and mechanical systems. It features a brass body with an NBR seal and a 3/8-inch NPT port. The valve is normally open, meaning flow passes freely when the coil is de-energized and shuts off when the coil is energized. It accepts a wide range of voltages including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to many control circuit configurations. It is rated for a maximum working pressure of 150 psi and carries a Cv factor of 3.0. Licensed HVAC technicians, plumbers, and industrial service professionals are the typical installers.

This valve is suited for residential and commercial applications where normally open flow control is required for compatible fluids, gases, or light oils. Its piloted diaphragm design requires a minimum operating pressure differential of 0 psi, allowing it to operate in low-pressure or gravity-fed systems. The broad voltage compatibility makes it a practical fit for both AC and DC control circuits across a variety of system types. The ASCO Number 8210G33 is referenced in the supplier data for cross-reference purposes.

Key Features

• Normally open 2-way piloted diaphragm design for fluid, gas, and light oil service
• Brass body construction with NBR seal material for durability and chemical compatibility
• 3/8-inch NPT port with a 5/8-inch orifice for adequate flow capacity
• Wide voltage compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac
• Maximum working pressure of 150 psi and Cv rating of 3.0
• CSA Certified, UL Listed, and NEMA 4X rated for wet and washdown environments

Compatibility

Designed as a direct-replacement piloted diaphragm solenoid valve for systems requiring a normally open 2-way valve with a 3/8-inch NPT port handling fluids, gases, or light oils. The ASCO Number 8210G33 is provided for cross-reference. Confirm coil compatibility separately, as solenoid coils are not included with this valve body.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial mechanic familiar with solenoid valve service. Shut off system pressure and de-energize all control circuits before beginning work. Verify the selected coil voltage matches the control circuit before connecting power. The NEMA 4X enclosure rating permits installation in wet or washdown locations, but local electrical codes including NEC requirements should be followed for all wiring connections.
