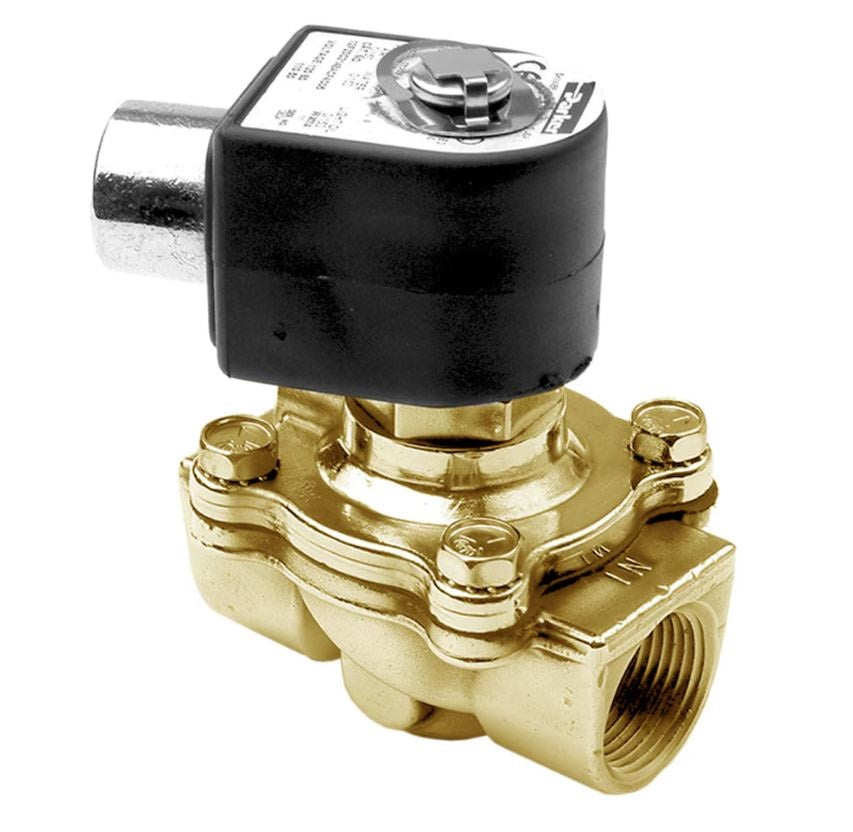

PARKER 06F22C2140AAF4C05 2-Way Solenoid Valve

Product Description

The Parker 06F22C2140AAF4C05 is a reliable 2-way solenoid valve, suitable for various applications involving air, liquids, and gases. The valve is made with a brass body and NBR seals, ensuring durability and performance.

• Configured as a 2-way, normally closed valve.
• Brass body and NBR seal material.
• Designed for general purpose use.

Product Highlights

This valve is ideal for applications requiring precise control of fluid flow.

Product Information

Standard Information

• Series: Gold Ring Series
• Valve Configuration: 2 Way

Technical Specifications

• Valve Type: 2-Way
• Function: Normally Closed
• Port Size: 3/8 inch
• Port Type: NPT
• Input Voltage: 110/50-120/60 VAC
• Body Material: Brass
• Seal Material: NBR
• Orifice Size: 5/8 inch
• Main Flow Coefficient: 3 Cv
• Power Consumption: 11 W
• Actuation Type: Internally Piloted
• Media: General Purpose
• Minimum Pressure Differential: 5 psi
• Maximum Pressure Differential: 135 psi
• Maximum Fluid Temperature: 180 °F
• Maximum Ambient Temperature: 77 °F
• Coil Type: 1/2 NPT Conduit w/ Leads (Includes Ground Lead)
• Insulation Class: Class F
• Ingress Protection Rating: NEMA 4, 4X
• Installation: IOM 7321
• Specifications Met: UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC
