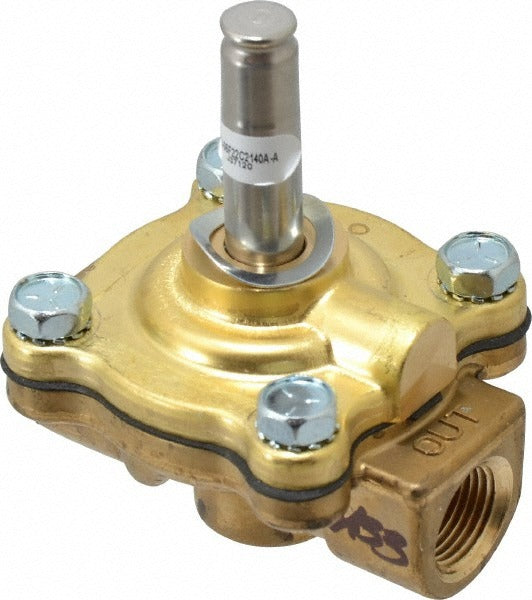

Parker 06F22C2140AAF 2-way Solenoid Valve 3/8 in Npt

Product Description

The PARKER 06F22C2140AAF is a two-way, normally closed, piloted diaphragm solenoid valve designed for controlling the flow of fluids, gases, and light oils in industrial and commercial systems. The valve features a brass body with an NBR seal and accepts a 3/8 inch NPT port connection. It operates across a wide voltage range including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to a broad range of control circuits. With a Cv factor of 3.0 and a maximum working pressure of 200 psi, this valve suits demanding flow-control applications. The coil is included with the valve assembly.

This valve is suited for residential, commercial, and light industrial installations where automated flow shutoff or control is required. Typical applications include water, air, gas, and light oil service lines. The normally closed design ensures the line defaults to shutoff on loss of power, which is the preferred fail-safe state in most fluid and gas control circuits. It is commonly installed by licensed plumbers, HVAC technicians, or industrial maintenance technicians as part of a larger automated control system. The 3/8 inch NPT thread standard provides straightforward integration into standard pipe assemblies.

Key Features

• Two-way, normally closed piloted diaphragm design for reliable fail-safe shutoff
• 3/8 inch NPT port with brass body and NBR seal for broad fluid and gas compatibility
• Multi-voltage rated: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• 200 psi maximum working pressure with a Cv rating of 3.0
• CSA Certified, UL Listed, and NEMA 4X rated enclosure for wet and wash-down environments
• Suitable for fluids, gases, and light oils up to 180 degrees F

Compatibility

Designed as an OEM-style replacement or direct-install two-way solenoid valve for fluid, gas, and light oil control applications using 3/8 inch NPT connections. Also referenced by ASCO Number 8210G1.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial technician. Shut off all line pressure and de-energize the control circuit before servicing or installing the valve. Verify that the supply voltage matches one of the rated voltage options before energizing the coil. The minimum operating pressure differential of 5 psi must be maintained for the piloted diaphragm to function correctly — this valve is not suitable for dead-end or zero-differential-pressure service.
