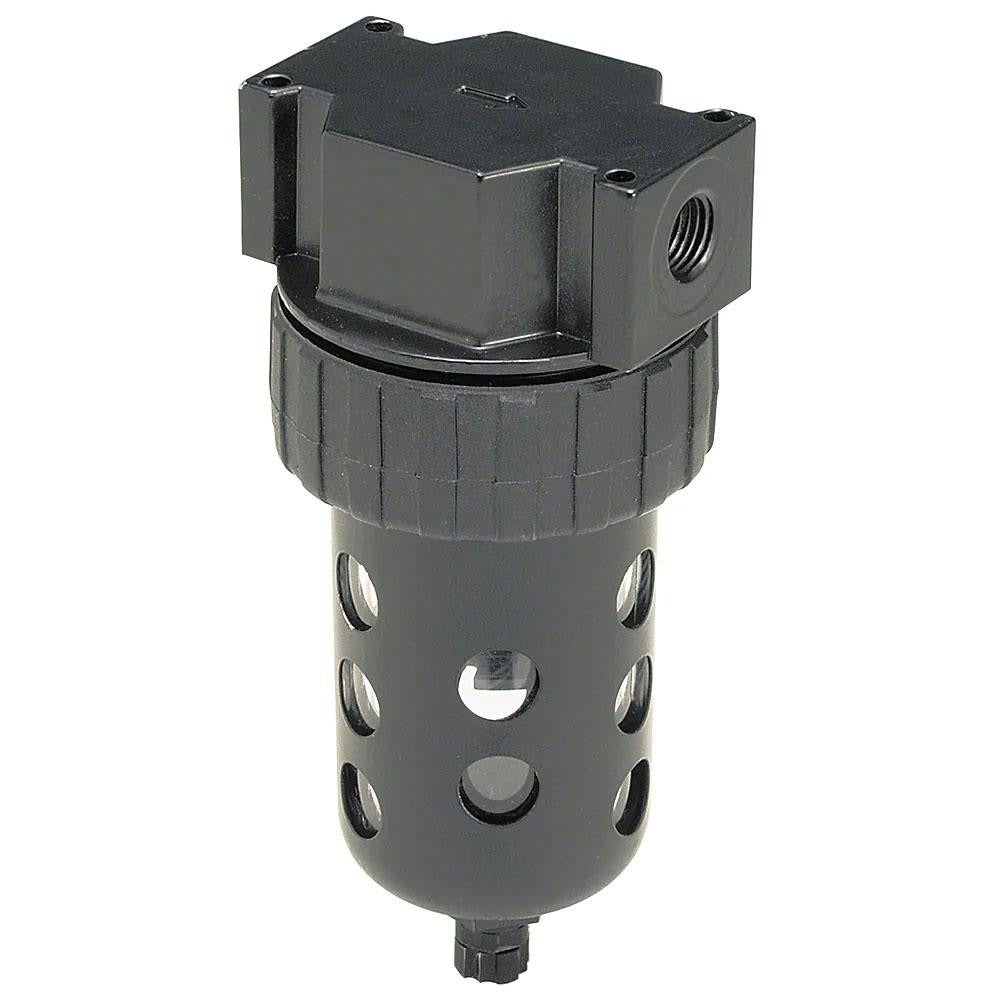

Parker 06F22AC Compressed Air Filter 3/8 Npt 80 Scfm

Product Description

The PARKER 06F22AC is an intermediate compressed air filter designed to remove particulate contamination from compressed air lines at the point of use or at distribution headers. Rated for 80 standard cubic feet per minute (SCFM) with a 40-micron filtration rating, it connects via 3/8 inch NPT end connections for direct integration into standard compressed air piping. The metal bowl guard protects the filter bowl during service and provides added durability in industrial and shop environments. This filter supports modular connection, allowing it to be grouped with other PARKER modular air preparation components on a common manifold. It is typically installed by mechanical contractors, pipefitters, or maintenance technicians.

The 06F22AC suits compressed air preparation systems in light industrial, manufacturing, and commercial facility applications. It is appropriate for use upstream of pneumatic tools, actuators, valves, and other air-operated equipment requiring clean, particulate-free supply air. The 3/8 inch NPT port size fits common branch-line piping in both new installations and retrofit situations where an intermediate-grade filter is required to protect downstream equipment.

Key Features

• 40-micron filter media removes particulate from compressed air supply lines
• 80 SCFM flow capacity supports moderate to high-demand pneumatic circuits
• 3/8 inch NPT end connections for standard compressed air piping integration
• Metal bowl guard provides mechanical protection to the filter bowl
• Modular connection design allows ganging with compatible PARKER air preparation units

Compatibility

Designed as an OEM-style replacement or new-installation intermediate compressed air filter for PARKER modular air preparation systems using 3/8 inch NPT connections. Compatible with other PARKER modular filter, regulator, and lubricator components that share the same modular connection interface.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. Depressurize and lock out the compressed air system completely before installing or servicing this filter. Apply appropriate thread sealant to NPT threads per manufacturer and local plumbing code requirements. Ensure flow direction matches the arrow or inlet marking on the filter body, and verify that downstream equipment pressure ratings are not exceeded before returning the system to service.
