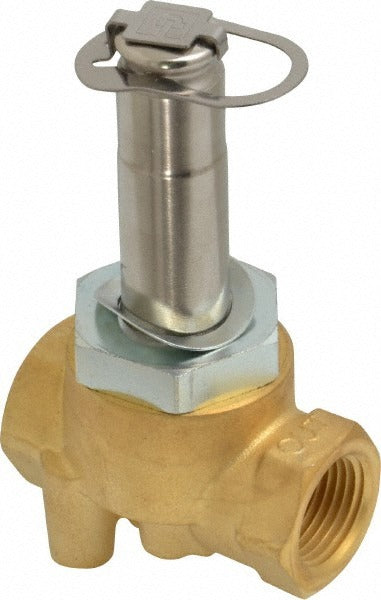

Parker 06F20C2110ACF Solenoid Valve 3/8 in Npt 150 Psi

Product Description

The PARKER 06F20C2110ACF is a direct-acting, normally closed solenoid valve designed for controlling flow in fluid, gas, and light oil service lines. Built with a brass body and NBR seal, it handles working pressures up to 150 psi and fluid temperatures up to 180 degrees F. The 3/8-inch NPT port and 0.1563-inch orifice suit a range of residential and light commercial plumbing, HVAC, and process control applications. The coil is included and supports multiple voltage inputs including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making field installation straightforward across varied electrical supplies.

This valve is suited for installation in fluid and gas control systems where a normally closed, fail-safe configuration is required. It operates with zero minimum pressure differential, meaning it does not rely on line pressure to open, which makes it appropriate for low-pressure or gravity-fed systems. Typical applications include HVAC zone control, water treatment, irrigation, and light industrial process lines. The ASCO Number 8263G15 may assist in cross-referencing with compatible accessories or replacement coils.

Key Features

• Direct-acting operation with zero minimum pressure differential — no line pressure required to actuate
• Normally closed unactuated state provides fail-safe shutoff on power loss
• Brass body with NBR seal rated for fluids, gases, and light oils
• Multi-voltage coil included: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Maximum working pressure 150 psi with a Cv factor of 0.52
• CSA Certified, UL Listed, and NEMA 4X rated enclosure for wet or washdown environments

Compatibility

Designed as a direct-acting solenoid valve for use in fluid, gas, and light oil service lines with 3/8-inch NPT connections. Cross-references to ASCO Number 8263G15 for coil and accessory compatibility.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off system pressure and de-energize all electrical circuits before servicing or replacing the valve. Verify supply voltage matches the coil rating before applying power. The NEMA 4X rating permits installation in damp or washdown locations, but the valve body and connections must be properly supported and leak-tested after installation.
