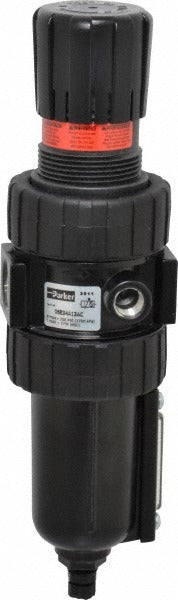

Parker 06E34A13AC Frl Filter Regulator 1/2 Npt 61 Scfm

Product Description

The PARKER 06E34A13AC is a single-piece filter/regulator combination unit designed for compressed air line conditioning in industrial pneumatic systems. Part of Parker's 06E Series, this intermediate-body FRL unit filters particulates down to 40 microns while regulating supply pressure up to 250 psi, flowing up to 61 SCFM. The metal bowl with manual drain and integrated sight glass allows technicians to monitor and purge condensate without shutting down the line. The zinc body construction and modular connection design make it a practical choice for inline air preparation assemblies. Installation is handled by industrial maintenance technicians and pneumatic system specialists.

This unit is suited for intermediate-duty compressed air applications in manufacturing, process automation, and general industrial environments. The 1/2 NPT port size fits standard compressed air distribution lines in the intermediate flow range. The modular connection enables inline expansion with compatible lubricators or additional filter stages without extra fittings. Operating temperature range is 32 degrees F to 175 degrees F, making it appropriate for typical indoor industrial service. The 1/4 NPT gauge port accommodates an optional pressure gauge for downstream pressure monitoring.

Key Features

• Single-piece filter/regulator design simplifies air preparation plumbing
• 40-micron filtration rating removes particulates and protects downstream components
• 250 psi maximum supply pressure with 61 SCFM flow capacity
• Metal bowl with manual drain and sight glass for easy condensate management
• Modular connection allows inline assembly with additional FRL components
• 1/4 NPT gauge port for optional downstream pressure monitoring

Compatibility

Designed as an OEM-style replacement or direct-fit unit for intermediate-body compressed air filter/regulator applications using 1/2 NPT connections within the Parker 06E Series modular FRL system.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or pneumatic systems specialist. Depressurize and isolate the compressed air line completely before installation or service. Mount the unit with the bowl oriented downward to allow proper condensate collection and drainage. Follow applicable OSHA and local compressed air safety codes when working on pressurized systems.
