Parker 06E32A13AC Frl Filter Regulator 1/2 Npt 61 Scfm

Product Description

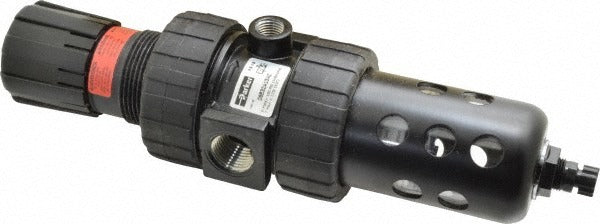

The PARKER 06E32A13AC is a 1-piece filter/regulator combination unit from Parker's 06E series, designed to condition compressed air by removing particulates and regulating downstream pressure in a single inline assembly. Rated to 150 psi maximum supply pressure and 61 SCFM flow, it handles intermediate-duty pneumatic circuit demands. The 40-micron filtration element protects downstream tooling and components from pipe scale, rust, and water droplets. A polycarbonate bowl with integral bowl guard provides visual bowl-level monitoring while adding impact protection. Licensed HVAC, instrumentation, and industrial maintenance technicians install this unit as part of compressed air preparation systems in commercial and light industrial environments.

The 06E32A13AC is suited for compressed air preparation on pneumatic control lines, production equipment, and instrumentation supply circuits where a combined filtration and pressure regulation function is required at a single mounting point. The 1/2 NPT end connections and intermediate body style fit standard manifold or pipe-mounted installations. Modular connection capability allows the unit to be paired with additional 06E series components. Operating temperature range is 32 degrees F to 125 degrees F, making it appropriate for indoor climate-controlled or conditioned mechanical spaces. No pressure gauge is included, but a 1/4-inch gauge port is provided for field-installed monitoring.

Key Features

• 1-piece filter/regulator design reduces plumbing connections and installation footprint
• 61 SCFM flow capacity suits intermediate pneumatic circuit demands
• 150 psi maximum supply pressure with manual bowl drain for scheduled condensate removal
• 40-micron element filters particulates, scale, and water from compressed air supply
• Polycarbonate bowl with bowl guard allows visual level check with added impact resistance
• 1/4-inch gauge port accommodates field-installed pressure gauge; modular connection supports 06E series expansion

Compatibility

Designed as a modular, OEM-style component within the Parker 06E series FRL product family, compatible with 06E series filter, regulator, and lubricator components that support modular connection assembly.

Installation Notes

Installation should be performed by a qualified millwright, instrumentation technician, or industrial maintenance professional. Depressurize and lock out the compressed air supply completely before threading or unthreading any connections. Apply thread sealant to NPT connections per site standards and applicable codes; do not overtighten polycarbonate bowl components. Mount the unit in an upright vertical orientation for proper condensate collection and manual drain operation, and verify flow direction arrow alignment with the supply direction before pressurizing.
