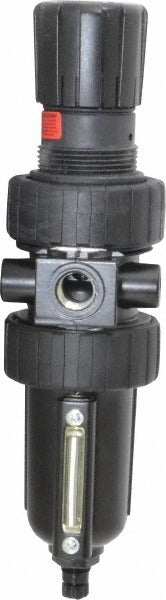

Parker 06E24A13AC Frl Filter Regulator 3/8 Npt 55 Scfm

Product Description

The PARKER 06E24A13AC is a single-piece filter/regulator combination unit designed for compressed air preparation in pneumatic systems. Part of Parker's 06E Series, this intermediate-body FRL unit combines particulate filtration and pressure regulation in one compact assembly. It accepts a 3/8 NPT port connection and handles up to 55 SCFM flow at a maximum supply pressure of 250 psi. The 40-micron filter element removes contaminants before regulated air reaches downstream tools, valves, or actuators. A metal bowl with manual drain and integrated sight glass allows fast visual inspection and moisture removal. Licensed HVAC technicians, industrial maintenance mechanics, and pneumatic system installers are the primary service trades for this component.

The 06E24A13AC suits intermediate-duty pneumatic installations in commercial and light industrial environments. It fits inline in compressed air distribution lines where a combined filter and regulator function is required at a 3/8 NPT connection point. The modular connection design allows it to integrate with compatible Parker 06E Series components, including lubricators, to build a full FRL assembly. Typical applications include air preparation ahead of pneumatic actuators, control valves, spray equipment, and other air-driven devices that require clean, regulated supply pressure. The unit is not rated for use below 32 degrees F or above 175 degrees F.

Key Features

• Single-piece filter/regulator design reduces installation space and connection points
• 3/8 NPT end connections with 55 SCFM maximum flow capacity
• 250 psi maximum supply pressure rating
• 40-micron filtration removes particulates from compressed air supply
• Metal bowl with integrated sight glass for visual monitoring of bowl contents
• Manual drain for controlled condensate removal
• Modular connection supports expansion into full 06E Series FRL assembly

Compatibility

Designed for use within the Parker 06E Series modular FRL system. Modular connections allow integration with compatible 06E Series lubricators and other accessories. Specific downstream equipment compatibility depends on flow and pressure requirements of the application.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system design and pneumatic component installation. Depressurize and lock out the compressed air supply line before installing or servicing this unit. Mount the unit vertically with the bowl facing down to allow proper condensate collection and drainage. Verify that system supply pressure does not exceed the 250 psi maximum rating before bringing the line back to service.
