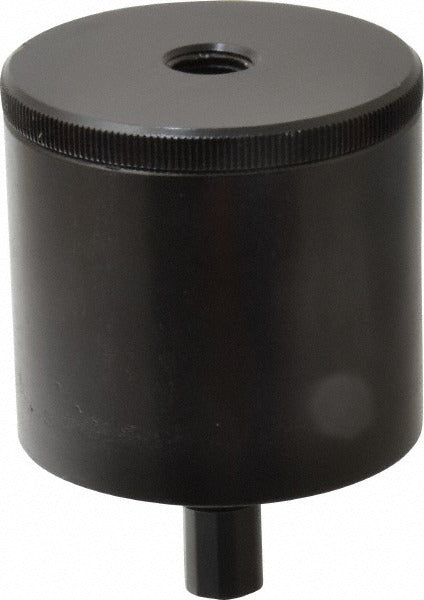

Parker 06D1NA Drip Leg Condensate Drain 1/4 in Npt

Product Description

The PARKER 06D1NA is a drip leg condensate drain designed to automatically remove accumulated liquid from compressed air lines, pneumatic systems, and other pressurized piping. It features a 1/4 inch NPT inlet and a 1/8 inch NPT outlet, with an operating pressure range of 10 to 250 psi. Weighing just 0.7 pounds, the unit is compact and well-suited for inline installation in tight spaces. It is typically installed by licensed HVAC technicians, pipefitters, or compressed air system contractors as part of routine system maintenance or new installation work.

This condensate drain is appropriate for use in compressed air distribution systems, pneumatic control lines, and similar pressurized fluid handling applications where moisture accumulation must be managed. The drip leg configuration allows condensate to collect at a low point in the line and drain without manual intervention. It is commonly found in light commercial and industrial settings where system reliability and air quality are priorities.

Key Features

• 1/4 inch NPT inlet for standard compressed air line connection
• 1/8 inch NPT outlet for condensate discharge routing
• Wide operating pressure range of 10 to 250 psi
• NPT thread type for straightforward threaded pipe installation
• Compact and lightweight at 0.7 pounds

Compatibility

Designed as an OEM-style replacement or new-install condensate drain for compressed air and pneumatic piping systems using 1/4 inch NPT threaded connections rated within the 10 to 250 psi operating range.

Installation Notes

Installation should be performed by a qualified technician familiar with pressurized piping systems. Depressurize and lock out the system before removing any existing fittings or installing this drain. Use appropriate thread sealant on all NPT connections and verify all joints for leaks before returning the system to service. Local plumbing and mechanical codes may apply.
