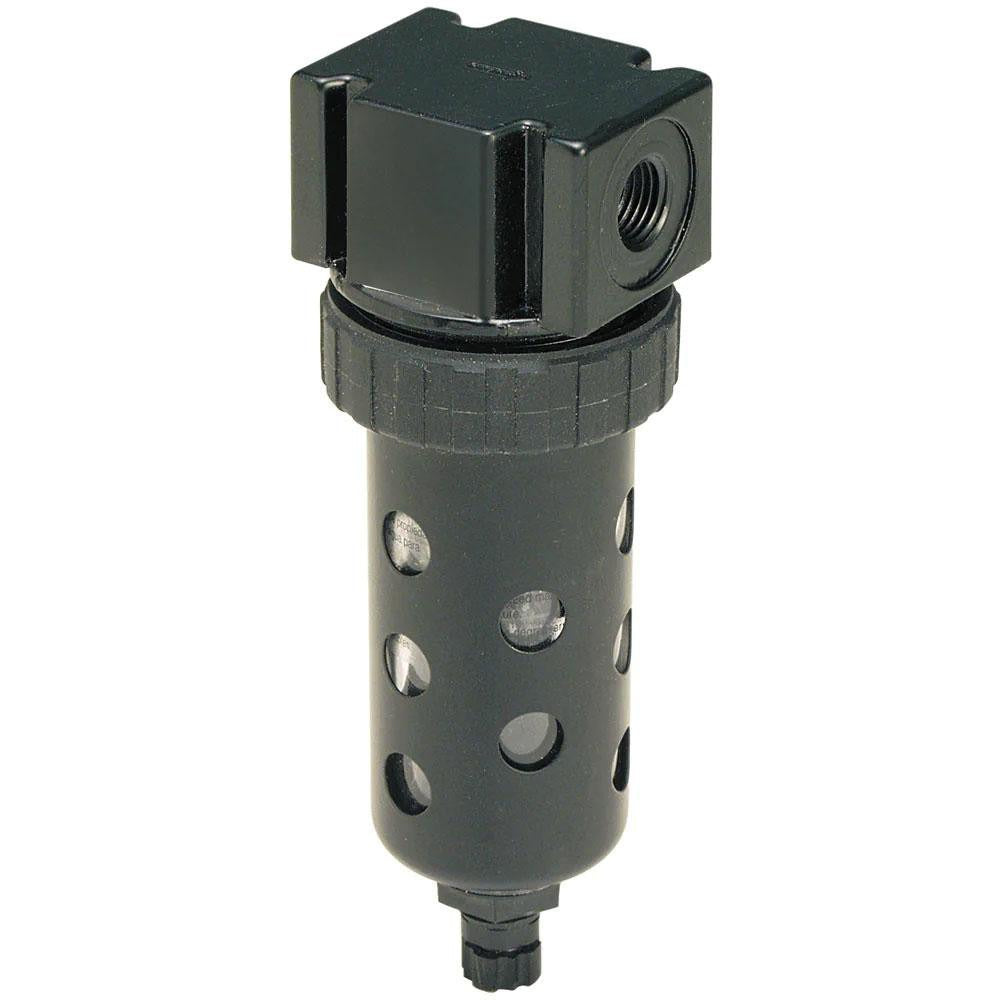

Parker 05F22AA Compact Air Filter 3/8 Npt 70 Scfm 40 Micron

Product Description

The PARKER 05F22AA is a compact compressed air filter designed to remove particulate contamination from pneumatic and compressed air systems. Rated at 70 standard cubic feet per minute (SCFM) with a 40-micron filter media, this unit provides reliable inline filtration for industrial and commercial air supply lines. The 3/8 inch NPT end connections allow straightforward installation into standard threaded pipe assemblies. A metal bowl guard protects the filter bowl during operation, and the modular connection design supports integration into multi-unit filter-regulator-lubricator (FRL) assemblies. Licensed HVAC, plumbing, and industrial mechanical technicians typically specify this filter for point-of-use air treatment applications.

This filter is suited for compressed air lines serving pneumatic tools, actuators, spray equipment, and control instrumentation where particulate removal is required upstream of sensitive components. The compact form factor makes it appropriate for installations with limited inline clearance. Its modular connection capability allows it to be combined with other Parker modular components to build a complete air preparation train without additional hardware.

Key Features

• 40-micron filtration rating removes particulate from compressed air supply lines
• 70 SCFM maximum flow rate supports a wide range of pneumatic tool and actuator loads
• 3/8 inch NPT end connections fit standard threaded pipe and fittings
• Metal bowl guard provides physical protection to the filter bowl
• Modular connection design allows combination with compatible filter, regulator, and lubricator units

Compatibility

Designed as an OEM-style inline compressed air filter for use in pneumatic systems requiring 3/8 inch NPT connections and particulate filtration up to 40 microns.

Installation Notes

Installation is typically performed by a qualified industrial mechanic, pipefitter, or HVAC technician. Depressurize and lock out the compressed air supply line before installing or servicing this filter. Apply thread sealant appropriate for compressed air service to NPT threads per the fitting manufacturer instructions. Verify that system operating pressure and flow rate fall within the rated capacity of the filter before returning the line to service.
