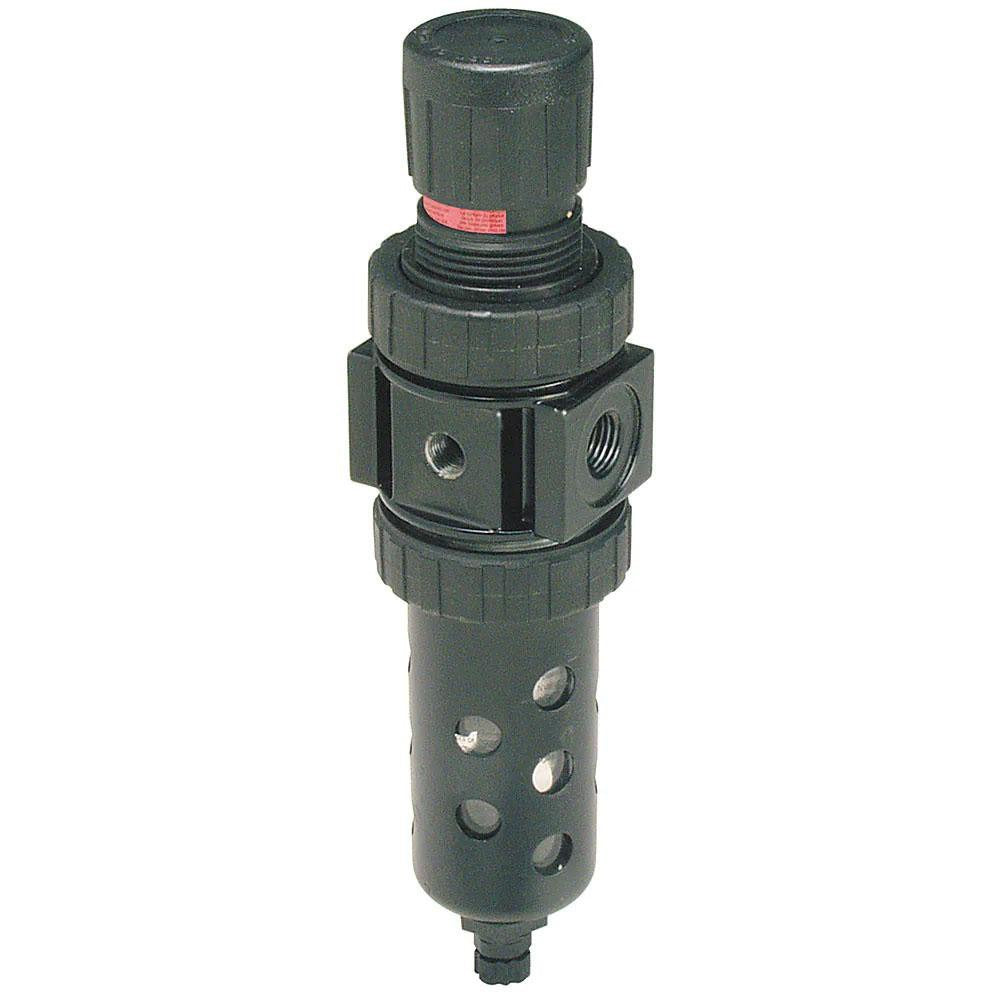

Parker 05E22A13AB Frl Filter Regulator 40 Scfm 3/8 Npt

Product Description

The PARKER 05E22A13AB is a compact, single-piece filter/regulator combination unit designed for compressed air preparation in pneumatic systems. Part of the Parker 05E Series, it filters particulate down to 40 microns while regulating supply pressure up to 150 psi, with a rated flow capacity of 40 SCFM. The zinc body and polycarbonate bowl with bowl guard make it a durable, service-friendly choice for inline air prep. A manual drain allows accumulated moisture and contaminants to be purged during routine maintenance. This unit is typically installed by industrial maintenance technicians, pipefitters, and pneumatic system specialists.

The 05E22A13AB is suited for residential and light commercial pneumatic applications where compact FRL footprint is required. The 3/8 NPT end connections make it compatible with standard compressed air distribution lines. Its modular connection design supports integration into multi-unit FRL assemblies. With a 1/4 NPT gauge port, a pressure gauge can be field-added if monitoring is required. Operating temperature range is 32 degrees F to 125 degrees F, making it appropriate for indoor compressed air systems in controlled environments.

Key Features

• Single-piece filter/regulator design reduces installation footprint and connection points
• 40 SCFM flow capacity supports moderate-demand pneumatic tooling and actuator circuits
• 150 psi maximum supply pressure with 40-micron filtration rating
• Manual drain for straightforward moisture and debris purging without tools
• Modular connection allows expansion into full FRL assemblies
• Bowl guard included for polycarbonate bowl protection in service environments

Compatibility

Designed as an OEM-style replacement or direct installation unit within Parker 05E Series pneumatic filter/regulator assemblies using 3/8 NPT ported compressed air lines.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician. Depressurize and lock out the compressed air supply before installing or servicing this unit. Ensure pipe threads are properly sealed with PTFE tape or thread sealant appropriate for compressed air service. Verify downstream pressure requirements before setting the regulator to avoid over-pressurizing connected equipment.
