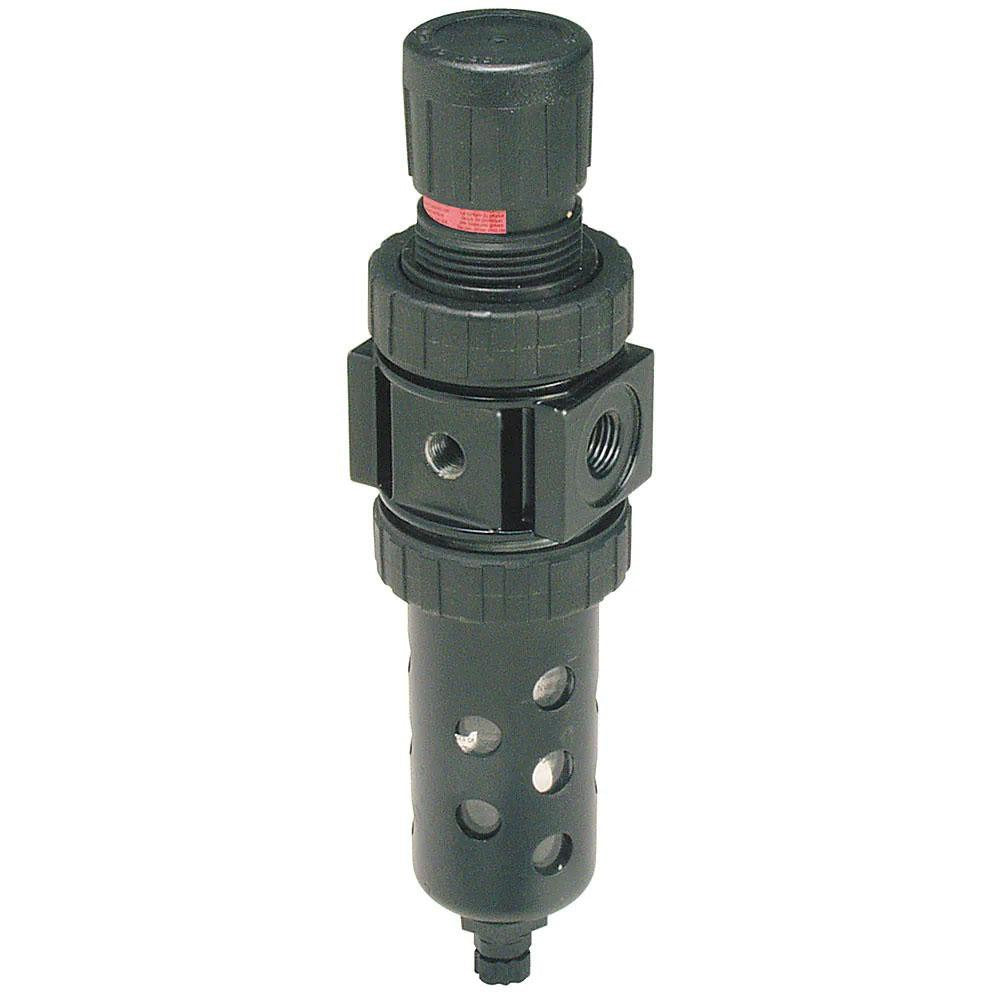

Parker 05E12A13AB Frl Filter Regulator 1/4 Npt 30 Scfm

Product Description

The PARKER 05E12A13AB is a compact FRL combination unit configured as a single-piece filter/regulator, designed to condition compressed air in pneumatic systems. It filters particulates down to 40 microns while regulating supply pressure up to 150 psi, delivering a maximum flow rate of 30 SCFM. The unit features a polycarbonate bowl with a built-in bowl guard and a manual drain for periodic condensate removal. The body is zinc construction, and the unit ships without a pressure gauge, though a 1/4-inch gauge port is provided for field installation. Modular connection capability allows integration into larger Parker 05E series assemblies. Licensed HVAC technicians, pneumatic system integrators, and industrial maintenance professionals are the typical installers.

This filter/regulator is suited for light-duty to medium-duty industrial and commercial pneumatic applications where a compact footprint is required. The 1/4 NPT port size makes it appropriate for smaller pneumatic tool lines, control panels, and instrumentation supply circuits. Operating temperature range is 32 degrees F to 125 degrees F, making it suitable for indoor conditioned environments. The Parker 05E series modular design allows this unit to be combined with additional FRL components when expanded conditioning is needed at the same station.

Key Features

• Single-piece filter/regulator configuration reduces installation footprint and connection points
• 40-micron filtration removes particulates from compressed air supply lines
• 150 psi maximum supply pressure with 30 SCFM flow capacity
• Polycarbonate bowl with bowl guard for visible condensate level and impact protection
• Manual drain for scheduled condensate removal without system shutdown
• 1/4-inch gauge port included for field-mounted pressure gauge if monitoring is required
• Modular connection compatible with Parker 05E series for expandable FRL configurations

Compatibility

Designed for use within the Parker 05E series FRL platform. Modular connection is supported, allowing pairing with compatible 05E series lubricators and additional filter stages. No specific equipment model compatibility was stated in the product data.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize and lock out the compressed air supply before installing or servicing this unit. Apply thread sealant appropriate for pneumatic service to all NPT connections and torque fittings according to fitting manufacturer guidelines. Verify that system supply pressure does not exceed 150 psi and that ambient temperatures remain within the rated 32 degrees F to 125 degrees F operating range.
