Parker 0503-8-12 Triple-Lok Straight Thread Hose to Pipe Connector With 37 Deg Flare

Product Description

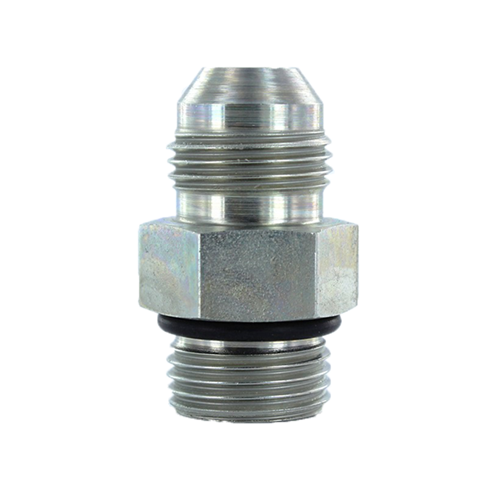

The Parker Hose to Pipe Connector, model 0503-8-12, is specifically designed for connecting hoses to pipes. This product features a straight thread design, and is part of the well-regarded Triple-Lok series. It has a nominal size of three-quarters of an inch by three-quarters of an inch with a sixteenth thread pitch, providing a robust connection for various applications.

• Rated for pressures up to 5000 psi.
• Constructed from steel for durability.
• Includes a flare end style for secure fitting.

Product Highlights

This connector is ideal for use in high-pressure environments in industrial applications. Its straight thread design allows for easy installation and reliable performance.

Product Information

Standard Information

• Manufacturer: Parker Hannifin
• Brand: Parker

Technical Specifications

• Type: Straight Thread
• Length: 1.94 inches
• Series: Triple-Lok
• Hex Size: 1-1/8 inches
• Material: Steel
• End Style: 37 deg Flare x UN/UNF-2A
• Nominal Size: 3/4 inches x 3/4-16
• Pressure Rating: 5000 psi
• Fitting/Connector Type: Connector
