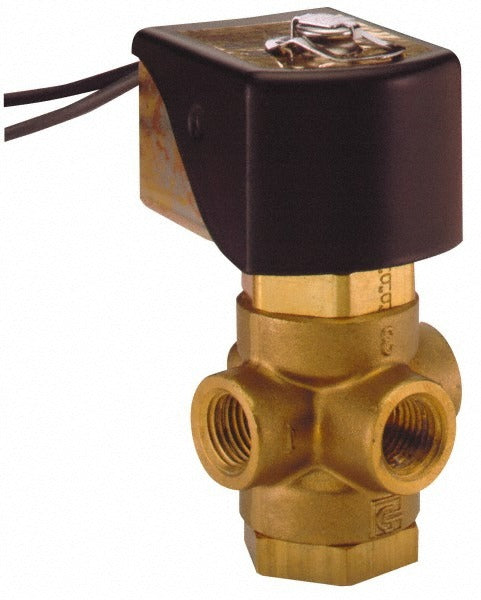

Parker 04F30U2104ACF Solenoid Valve 1/4 Inch Npt Brass

Product Description

The PARKER 04F30U2104ACF is a direct-acting solenoid valve designed for precise fluid or gas flow control in industrial and mechanical systems. Built with a brass body and NBR seal, this valve operates across a wide voltage range including 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, and 240/60 to 220/50Vac, making it adaptable to a broad range of control circuits. It carries a maximum working pressure of 125 psi and a maximum operating temperature of 200 degrees F. With a minimum operating pressure differential of zero, it functions in low-pressure and dead-end applications without issue. Licensed electricians, HVAC technicians, and industrial maintenance professionals typically install this valve in automated control systems.

This valve is suited for universal applications in both residential and commercial settings where dependable solenoid-controlled flow is required. The NPT thread standard allows straightforward integration into standard pipe assemblies. Its compact form factor and coil-ready design make it a practical choice in pneumatic, hydraulic, and refrigeration or fluid-handling installations where space and voltage flexibility are priorities. The universal unactuated state designation means the valve can be configured for normally open or normally closed service depending on coil orientation and system design.

Key Features

• Direct-acting valve design with zero minimum operating pressure differential — works in low-pressure and dead-end service
• Wide multi-voltage compatibility: 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, and 240/60 to 220/50Vac
• Brass body with NBR seal for durability across a range of compatible media
• 1/4 inch NPT port for direct integration into standard pipe assemblies
• Rated to 125 psi maximum working pressure and 200 degrees F maximum temperature
• CSA Certified, UL Listed, and NEMA 4X rated for wet and washdown environments
• 11-watt coil wattage; coil sold separately (solenoid coil not included)

Compatibility

Universal application valve suitable for pneumatic, hydraulic, and fluid-handling systems requiring a 1/4 inch NPT direct-acting solenoid valve. Also referenced by ASCO Number 8320G101.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician familiar with solenoid valve wiring and local NEC requirements. De-energize the circuit and relieve all system pressure before removing or installing the valve. The coil is not included and must be sourced separately — confirm coil voltage matches the supply circuit before energizing. Verify thread engagement and seal condition at the NPT connections before returning the system to service.
