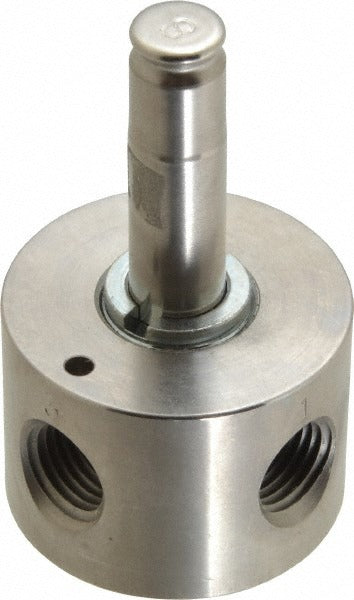

Parker 04F30C3104AAF 3-way Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 04F30C3104AAF is a 3-way, direct-acting solenoid valve designed for fluid and gas control in industrial and commercial systems. It operates in a normally closed (NC) configuration, meaning flow is blocked when the valve is de-energized. The stainless steel body and NBR seal construction make it suitable for a range of media compatibility requirements. Rated at a maximum working pressure of 125 psi and a 6-watt power draw, this valve is sized for 1/4 inch NPT ports. Note that solenoid coils are not included and must be sourced separately. Licensed HVAC technicians, plumbers, and industrial service techs typically install this valve in process control and fluid handling applications.

The 04F30C3104AAF is suited for universal applications where a compact, direct-acting 3-way solenoid valve is required. Its zero minimum operating pressure differential rating means it can actuate without relying on line pressure to open or close, making it effective in low-pressure or gravity-fed systems. The 1/4 inch NPT port size fits common small-bore piping found in refrigeration, pneumatic, and chemical dosing circuits. This valve is referenced by ASCO Number 8320G63.

Key Features

• 3-way, direct-acting operation with no minimum pressure differential required
• Normally closed (NC) unactuated state — flow blocked when de-energized
• Stainless steel body for corrosion resistance in demanding media
• NBR seal material for compatibility with a broad range of fluids
• 1/4 inch NPT port with 6-watt AC coil power draw
• Solenoid coils not included — must be ordered separately

Compatibility

Listed as a universal-application solenoid valve. Cross-referenced to ASCO Number 8320G63. Solenoid coils are not included and must be specified and ordered separately for this valve body.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial pipefitter in accordance with applicable local codes. Shut off all line pressure and de-energize the circuit before making any connections. Ensure the selected coil matches the valve body's electrical specifications before energizing. Apply thread sealant to NPT connections per standard practice and verify there are no leaks before returning the system to service.
