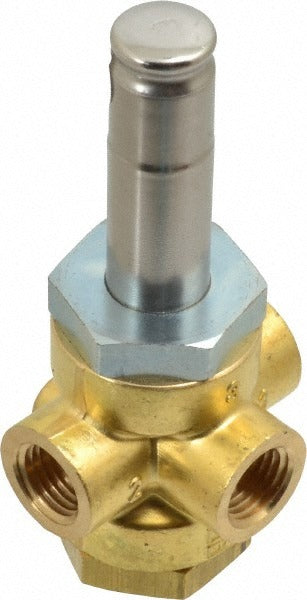

Parker 04F30C2108ACF Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 04F30C2108ACF is a direct-acting, normally closed solenoid valve designed for fluid and gas control in industrial and commercial systems. The valve features a 1/4 inch NPT port, a brass body, and an NBR seal rated for service up to 200 degrees F. It accepts a wide range of supply voltages including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable across diverse control circuit configurations. Maximum working pressure is 85 psi with a minimum operating pressure differential of zero, allowing it to open and close under no-flow or low-flow conditions. Coil wattage is 11 watts. Licensed electricians, HVAC technicians, and mechanical contractors install this valve in process piping, refrigeration, and fluid-handling applications.

This valve is suited for universal applications where a reliable normally closed shutoff is required in a compact form factor. The zero-minimum-pressure-differential rating makes it appropriate for systems that cannot rely on line pressure to assist valve actuation. Its multi-voltage compatibility allows a single part to serve installations with varying control voltages, reducing the need for separate SKUs on mixed-voltage job sites. Common install scenarios include refrigeration solenoids, water or air shutoff circuits, and industrial process control panels where CSA and UL compliance is required.

Key Features

• Direct-acting operation with zero minimum pressure differential — functions without line pressure assist
• Normally closed unactuated state for fail-safe shutoff on power loss
• Multi-voltage coil compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, 240/60 to 220/50 Vac
• Brass body and NBR seal rated to 200 degrees F for broad fluid compatibility
• CSA Certified, UL Listed, and NEMA 4X rated for wet or wash-down environments
• 1/8 inch orifice with Cv factor of 0.25 for precise low-flow control

Compatibility

Designed as a direct-acting normally closed solenoid valve for universal fluid and gas control applications. Cross-references ASCO Number 8320G186. No specific OEM system or model compatibility was provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician or qualified mechanical contractor familiar with applicable NEC and local plumbing codes. De-energize the control circuit and isolate and depressurize the line before replacing or installing the valve. Note that per manufacturer data, solenoid coils are not included and must be sourced separately before commissioning. Verify supply voltage matches one of the rated coil voltages before energizing.
