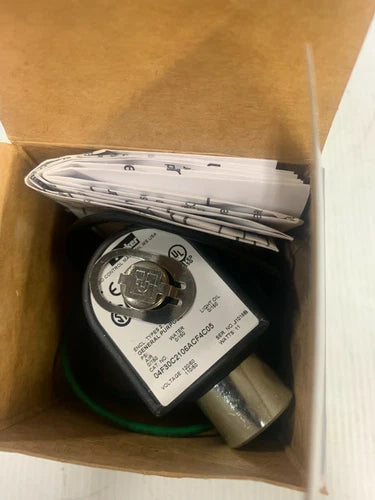

PARKER 04F30C2106ACF4C05 3-Way Solenoid Valve

Product Description

The PARKER 04F30C2106ACF4C05 is a 3-way solenoid valve designed for low to medium pressure systems. This valve features a quarter inch NPT connection and operates in a normally closed position, opening when energized. It is compatible with air, water, light oil, and inert gases, making it a versatile choice for various applications.

• Direct acting valve for reliable operation.
• 1/4 inch NPT connection for easy installation.
• Suitable for multiple media types including air and water.

Product Highlights

This solenoid valve is effective for applications where control of fluid flow is necessary. It does not require a minimum operating pressure differential, ensuring flexibility in installation and use.

Product Information

Standard Information

• Brand: PARKER
• MPN: 04F30C2106ACF4C05

Technical Specifications

• Valve Type: Normally Closed (NC)
• Number Of Ports/Ways: 3-Way
• Connection Type: FNPT
• Nominal Size: 1/4 inch
• Voltage Rating: 110 - 120 VAC at 50/60 Hz
• Input Voltage: 120 VAC
• Pressure Rating: 0 PSI Minimum, 140 PSI for Air/Inert Gas, Water, and Light Oil
• Media Compatibility: Air, Water, Light Oil, Inert Gas
• Actuation: Direct Acting
• Body Material: Forged Brass
• Trim Material: NBR
• Temperature Rating: 200°F
• Orifice Size: 3/32 inch
• Coil Insulation Class: Class 155
• Power Rating: 11 W
• Enclosure: NEMA 4, 4X
• Electrical Connection: 18-inch leads
• Industry Standards: UL Listed and CSA Certified
• Width: 2.76 inches
