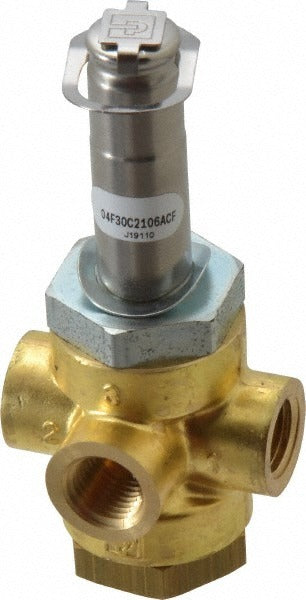

Parker 04F30C2106ACF Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 04F30C2106ACF is a direct-acting, normally closed solenoid valve designed for fluid and gas control in industrial and commercial systems. With a 1/4 inch NPT port, a brass body, and an NBR seal, it handles a wide range of media including water, air, and compatible light oils. The valve operates across multiple voltage inputs: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, making it adaptable to varied control circuits. Maximum working pressure is 150 psi, and maximum temperature is 200 degrees F. Licensed electricians, HVAC technicians, and industrial maintenance professionals are the typical installers.

This valve suits universal applications where direct-acting, normally closed shutoff control is required. It fits residential and commercial systems involving fluid or pneumatic line control, automation equipment, or process plumbing. The zero minimum operating pressure differential means it functions reliably even in low-pressure or gravity-fed systems. An 11-watt coil draws minimal power, and the included coil accommodates the supported voltage ranges. Note that the manufacturer listing also references ASCO Number 8320G21, which may assist in cross-referencing equivalent configurations.

Key Features

• Direct-acting normally closed design with zero minimum operating pressure differential
• Multi-voltage compatibility: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac
• Brass body and NBR seal for compatibility with water, air, and light petroleum media
• 150 psi maximum working pressure rated for demanding service conditions
• CSA Certified, UL Listed, and NEMA 4X rated for wet or washdown environments
• 11-watt coil included; compact footprint at 3.78 inches tall and 2.76 inches long

Compatibility

Designed as a direct-acting normally closed solenoid valve for universal fluid and gas control applications requiring a 1/4 inch NPT connection. Cross-reference ASCO Number 8320G21 for equivalent configurations.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician familiar with low-voltage and line-voltage control circuits. De-energize the circuit and isolate the supply line before removing or installing the valve. Follow applicable NEC and IPC guidelines for electrical connections and piping. Verify that the media, operating pressure, and temperature remain within the rated limits before returning the system to service.
