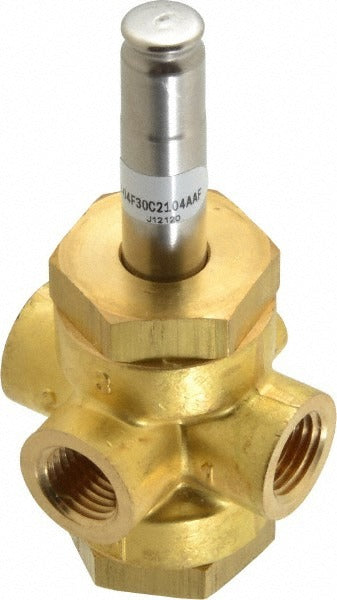

Parker 04F30C2104AAF Solenoid Valve 1/4 in Npt Nc Brass

Product Description

The PARKER 04F30C2104AAF is a direct-acting, normally closed solenoid valve designed for precise fluid and gas control in industrial and commercial applications. Built with a brass body and NBR seal, it handles a maximum working pressure of 125 psi and operates across a wide range of voltages including 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac. The 1/4 inch NPT port and 1/16 inch orifice make it well suited for low-flow control circuits. Coil wattage is rated at 6 watts. Licensed HVAC technicians, plumbers, and industrial mechanics are the primary installers.

This valve is rated for universal applications and supports a minimum operating pressure differential of zero, meaning it can open against no line pressure. That characteristic makes it suitable for gravity-fed systems, low-pressure pneumatic circuits, and general-purpose fluid control where conventional pilot-operated valves would not function. Maximum fluid or ambient temperature is 180 degrees F. The valve meets CSA, UL Listed, and NEMA 4X standards, making it appropriate for wet or washdown environments as well as standard indoor service.

Key Features

• Direct-acting design operates at zero minimum pressure differential — no line pressure required to actuate
• Brass body with NBR seal for compatibility with a broad range of fluids and gases
• Multi-voltage coil support: 12 Vdc, 24 Vdc, 24/60 Vac, 120 Vdc, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac
• Normally closed configuration — valve defaults to closed state when de-energized
• NEMA 4X rated enclosure suitable for washdown and corrosive environments
• CSA Certified and UL Listed for code-compliant installations

Compatibility

Designed as a direct-acting solenoid valve for universal fluid and gas control applications. ASCO equivalent reference number 8320G19 is noted in supplier data. Verify voltage, pressure, and media compatibility before installation.

Installation Notes

Installation should be performed by a licensed technician familiar with fluid or pneumatic control systems. De-energize and depressurize the line completely before removing or installing the valve. NPT threaded connections should be made with appropriate thread sealant per local plumbing or mechanical codes. Note that solenoid coils are sold separately — confirm coil voltage matches the supply circuit before energizing.
