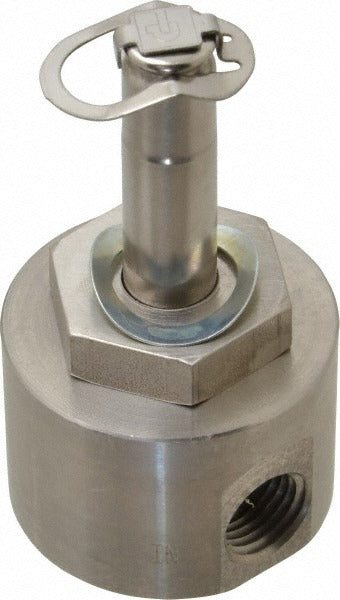

Parker 04F20C3103AAF Solenoid Valve 1/4 Inch Npt

Product Description

The PARKER 04F20C3103AAF is a normally closed solenoid valve designed for precise flow control of fluids, gases, and light oils in demanding industrial and commercial applications. Built with a stainless steel body and NBR seal material, this valve delivers corrosion resistance and reliable sealing across a wide range of media. It operates at a maximum working pressure of 750 psi and draws 6 watts of AC power. The valve requires a separately sourced solenoid coil for operation. It is installed by licensed plumbers, pipefitters, and mechanical contractors working on process piping, HVAC, and fluid control systems.

This valve is suited for residential, commercial, and light industrial systems where tight shutoff and durable construction are required. With a 1/4 inch NPT port and a minimum operating pressure differential of 0 psi, it can function in low-differential-pressure conditions, making it versatile across a broad range of fluid and gas control scenarios. The Cv factor of 0.0600 reflects its suitability for low-flow applications. Compatible media include water, air, inert gases, and light oils within the rated pressure and temperature limits of the body and seal materials.

Key Features

• Normally closed design provides fail-safe shutoff when de-energized
• Stainless steel body offers corrosion resistance for aggressive media environments
• NBR seal material compatible with water, air, gases, and light oils
• Maximum working pressure of 750 psi suits demanding system requirements
• Zero minimum operating pressure differential allows use in low-pressure systems
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet and washdown locations
• Solenoid coil sold separately, allowing coil selection to match voltage and enclosure requirements

Compatibility

Compatible with fluids, gases, and light oils within the rated pressure limits of the valve body and NBR seal. Cross-references to ASCO Number 8262G80. Solenoid coils are not included and must be sourced separately to complete the assembly.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes. Depressurize and isolate the line before installation or service. Ensure the solenoid coil voltage matches the available AC supply before energizing. Do not exceed the rated maximum working pressure of 750 psi, and verify that the process media is compatible with stainless steel and NBR seal material before commissioning.
