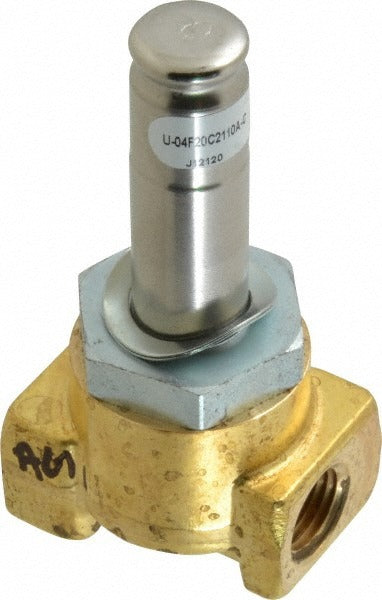

Parker 04F20C2110ACF Solenoid Valve 1/4 in Npt Nc Brass

Product Description

The PARKER 04F20C2110ACF is a direct-acting, normally closed solenoid valve designed to control the flow of fluids, gases, and light oils in industrial and commercial piping systems. It features a 1/4 inch NPT port, a brass body, and an NBR seal rated for temperatures up to 180 degrees F. The valve accepts a wide range of input voltages including 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, and 240/60 to 220/50Vac, making it adaptable across many control circuit configurations. With a maximum working pressure of 150 psi and a minimum operating pressure differential of zero, it suits both gravity-fed and pressurized line applications. A coil is included. Licensed tradespeople across HVAC, plumbing, and process piping regularly specify this valve for automated shutoff and flow control duty.

This valve is suited for residential and light commercial applications where automated on/off control of fluids, gases, or light oils is required. Its direct-acting design means it opens without relying on line pressure, allowing use at zero pressure differential. The 1/4 inch NPT port threads directly into standard pipe fittings. Typical installation scenarios include refrigeration lines, compressed air systems, water supply control, and fuel gas shutoff where code-compliant solenoid valves with listed certifications are required.

Key Features

• Direct-acting design operates at zero minimum pressure differential
• Normally closed state ensures fail-safe shutoff on power loss
• Brass body with NBR seal rated to 180 degrees F
• Multi-voltage coil compatible with 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, and 240/60 to 220/50Vac
• 150 psi maximum working pressure with a Cv factor of 0.50
• CSA Certified, UL Listed, and NEMA 4X rated enclosure

Compatibility

Designed as an OEM-style direct-acting solenoid valve for use with fluids, gases, and light oils in systems requiring 1/4 inch NPT normally closed shutoff control. Also referenced under ASCO Number 8262G263.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or HVAC technician in accordance with applicable local codes and the International Fuel Gas Code or International Plumbing Code where relevant. Shut off and depressurize the line and disconnect power to the control circuit before removing or installing the valve. Verify that coil voltage matches the control circuit before energizing. Do not exceed the 150 psi maximum working pressure rating or the 180 degrees F maximum temperature rating for the seal material.
