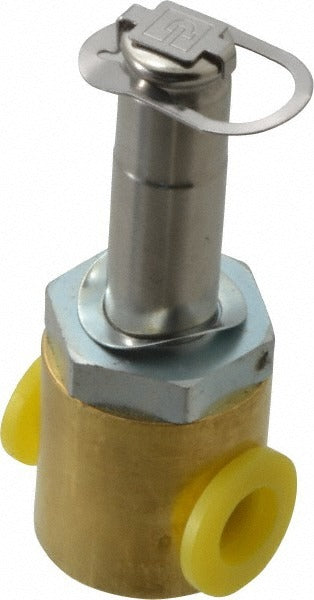

Parker 04F20C1108ACF Solenoid Valve 1/4 in Npt Brass

Product Description

The PARKER 04F20C1108ACF is a direct-acting, normally closed solenoid valve designed for precise on/off control of fluids, gases, and light oils in industrial and commercial fluid-control systems. The valve features a 1/4 inch NPT port, a brass body, and an NBR seal rated for service up to 180 degrees F. It operates across a wide voltage range including 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac, giving installers flexibility across different control circuits. Maximum working pressure is 300 psi, and the coil draws 11 watts. This valve is installed by licensed plumbers, HVAC technicians, and industrial fluid-control specialists.

This valve is suited for residential and commercial applications where positive shutoff of fluids, gases, or light oils is required. Its direct-acting design means it opens and closes under power regardless of pressure differential, making it reliable at zero differential pressure. The 1/4 inch NPT connection is standard across a wide range of manifolds, control panels, and piping assemblies. The broad voltage compatibility allows integration into both AC and DC control systems without requiring a separate coil change. This unit carries CSA, UL Listed, and NEMA 4X certifications, making it appropriate for use in wet or wash-down environments.

Key Features

• Direct-acting normally closed design operates at zero minimum pressure differential
• Brass body with NBR seal rated for fluids, gases, and light oils up to 180 degrees F
• Multi-voltage coil compatible with 12 Vdc, 24 Vdc, 120 Vdc, 24/60 Vac, 120/60 to 110/50 Vac, and 240/60 to 220/50 Vac
• 300 psi maximum working pressure with a 0.3500 Cv factor
• CSA Certified, UL Listed, and NEMA 4X rated for use in demanding environments
• Coil included; 11-watt power draw

Compatibility

Designed as an OEM-style direct-acting solenoid valve for 1/4 inch NPT fluid and gas control applications in residential and commercial systems. Also cataloged under ASCO Number 8262G232.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or industrial fluid-control specialist in accordance with applicable local codes and the IPC or IFGC as relevant to the media being controlled. De-energize the control circuit and isolate the fluid or gas supply before removing or installing the valve. Verify that media temperature, pressure, and chemical compatibility are within the rated limits of the brass body and NBR seal before commissioning. Do not exceed the 300 psi maximum working pressure rating.
