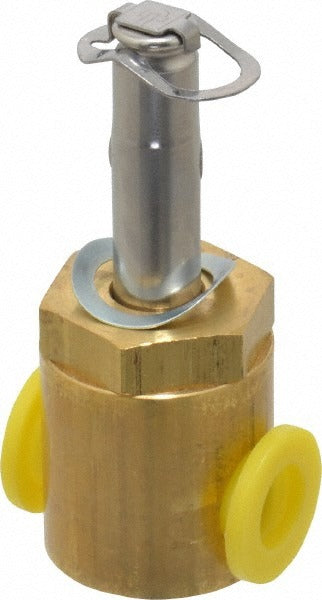

Parker 04F20C1106AAF Solenoid Valve 1/4 in Npt Brass

Product Description

The PARKER 04F20C1106AAF is a direct-acting, normally closed solenoid valve designed for precise fluid and gas flow control in industrial and commercial systems. It features a 1/4 inch NPT port, a brass body, and an NBR seal, making it suitable for use with fluids, gases, and light oils. The valve operates across a wide range of voltages including 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, and 240/60 to 220/50Vac. With a maximum working pressure of 360 psi and a minimum operating pressure differential of zero, it handles both low-pressure and higher-pressure applications. Rated at 6 watts, it is a compact, low-power unit suited for automation, process control, and mechanical system integration.

This solenoid valve is used in residential and commercial applications where reliable on/off control of fluids, gases, or light oils is required. Its direct-acting design means it operates without a minimum pressure differential, making it effective even in gravity-fed or low-pressure systems. The multi-voltage coil compatibility makes it adaptable to a wide range of control circuits. It is typically installed by licensed plumbers, HVAC technicians, or industrial maintenance professionals in piping systems requiring automated shutoff or flow switching. Note that solenoid coils are not included and must be sourced separately.

Key Features

• Direct-acting normally closed design operates at zero minimum pressure differential
• 1/4 inch NPT port with brass body for compatibility with a wide range of piping systems
• NBR seal suitable for use with fluids, gases, and light oils
• Multi-voltage support: 12Vdc, 24Vdc, 24/60Vac, 120Vdc, 120/60 to 110/50Vac, 240/60 to 220/50Vac
• Maximum working pressure of 360 psi with a Cv factor of 0.17
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or washdown environments

Compatibility

Designed as an OEM-style direct-acting solenoid valve for use in fluid, gas, and light oil control applications with 1/4 inch NPT piping. Also referenced as ASCO Number 8262G20. Solenoid coils are not included and must be ordered separately to match the desired operating voltage.

Installation Notes

Installation should be performed by a licensed plumber, HVAC technician, or qualified industrial maintenance professional. Shut off the fluid or gas supply and relieve system pressure completely before beginning any valve installation or service. Ensure the selected coil voltage matches the available control circuit voltage before energizing the valve. Follow all applicable local codes, including IFGC and IPC requirements where relevant, and verify NEMA 4X rating requirements are met for the installation environment.
