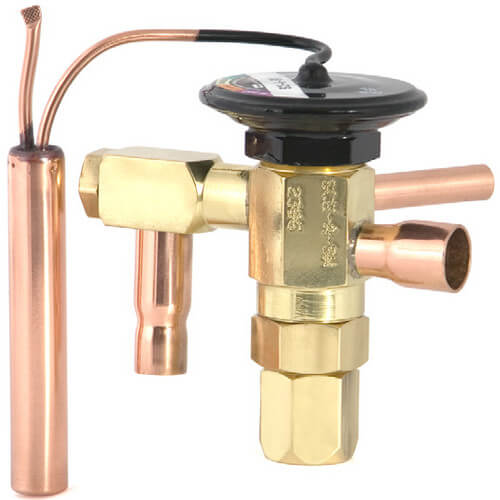

Parker 040416-15 Sce-A-Sz Thermal Expansion Valve 1/2 to 1 Tons

Product Description

The PARKER 040416-15 SC(E) series refrigeration right angle brass body expansion valve incorporates a removable inlet strainer, and is an ideal choice for commercial refrigeration and supermarket applications. Designed for supermarket cases, self-contained cases, walk-in coolers/freezers, ice machines, salad bars and transport refrigeration.

• Removable power element
• 60: capillary tube
• Removable inlet strainer
• Field adjustable superheat

Product Highlights

The valve features a 1/4" ODF external equalizer and is compatible with R-502, R-402A, R-404A, R-402B, and R-507 refrigerants. Available with W, Z or MOP (X) charges.

Product Information

Standard Information

• Brand: PARKER
• Manufacturer Part Number: 040416-15

Technical Specifications

• Application: Ice Machines, Walk-in Coolers, Transport Refrigeration, Salad Bars, Self-Contained Cases, Supermarket Cases
• Inlet Size: 3/8"
• Outlet Size: 1/2"
• Connection Type: ODF
• Ton: 1/2 to 1
• Equalizer: 1/4" ODF
• Refrigerant Type: R-502, R-402A, R-404A, R-402B, R-507
