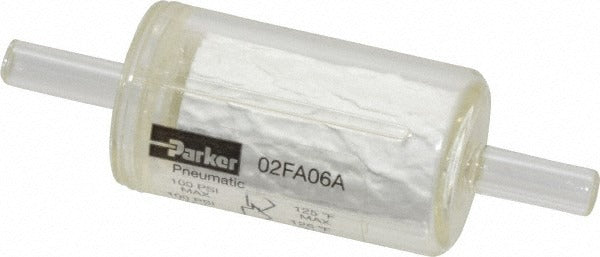

Parker 02FA06A Coalescing Filter 1/4 Inch Port 0.01 Micron

Product Description

The PARKER 02FA06A is a coalescing filter designed to remove oil aerosols, water aerosols, and fine particulate from compressed air and gas lines. With a 0.01 micron rating, it provides high-efficiency filtration suitable for downstream instrumentation, pneumatic controls, and process equipment that cannot tolerate contamination. The filter accepts a 1/4 inch port connection and is rated to 100 psi maximum. It has an overall diameter of 1 inch and stands 3.28 inches high, making it a compact inline solution for tight installations. Licensed technicians and pipefitters install this unit as part of compressed air treatment trains.

This coalescing filter is used in residential, commercial, and light industrial compressed air systems where clean, dry air is required. Typical applications include air preparation for pneumatic actuators, HVAC control systems, paint booths, and instrumentation supply lines. It is suited for any installation where oil carryover from a compressor or moisture accumulation in the line would damage downstream components or compromise process quality.

Key Features

• 0.01 micron filtration rating removes fine oil and water aerosols from compressed air lines
• 1/4 inch port size fits standard compressed air line fittings
• 100 psi maximum operating pressure
• Compact 1 inch overall diameter allows installation in space-constrained locations
• Lightweight at 0.1 pounds, suitable for inline mounting without additional support

Compatibility

Designed as an OEM-style replacement or new-installation coalescing filter for compressed air systems with 1/4 inch port connections rated up to 100 psi.

Installation Notes

Installation should be performed by a qualified pipefitter or technician familiar with compressed air system service. Depressurize and lock out the compressed air supply completely before removing or installing any inline filter. Verify port thread type and size before installation to ensure a leak-free connection. Follow applicable plumbing and compressed air codes, including OSHA 29 CFR 1910.169 guidelines for compressed air receivers and distribution systems.
