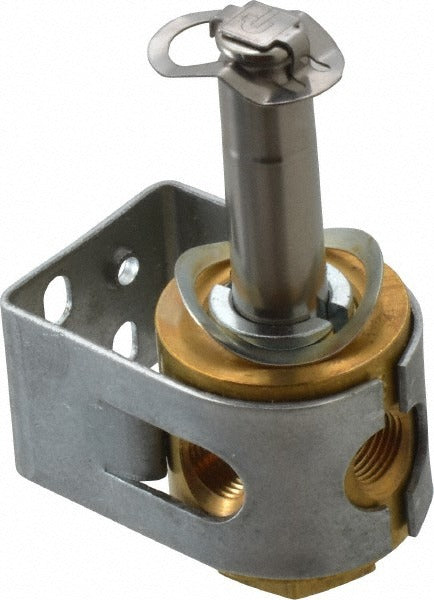

Parker 02F30C1106AAF 3-way Solenoid Valve 1/8 in Npt

Product Description

The PARKER 02F30C1106AAF is a three-way, direct-acting solenoid valve designed for fluid and pneumatic control applications across HVAC, refrigeration, and industrial systems. The valve ships in a normally closed state and opens when the solenoid coil is energized. It features a brass body with an NBR seal, a 1/8 inch NPT port, and a rated maximum working pressure of 100 psi. The Cv factor is 0.12, making it suited for low-flow control circuits. Minimum operating pressure differential is 0 psi, so it can operate in deadhead or gravity-fed line conditions. Solenoid coils are not included and must be sourced separately. Licensed HVAC technicians and pipefitters are the primary installers.

This valve is rated for universal application and accepts AC power at 6 watts when paired with a compatible solenoid coil. The 1/8 inch NPT threaded port fits standard pipe fittings used in refrigerant circuit pilots, pneumatic control lines, compressed air manifolds, and low-pressure fluid switching circuits. The direct-acting design means the valve does not rely on line pressure to operate, which makes it usable across a wide range of system pressures from 0 psi up to the 100 psi maximum. It is compatible with coil assemblies designated for this valve body, including ASCO Number 8320G15 coil references noted in supplier documentation.

Key Features

• Three-way direct-acting operation with normally closed unactuated state
• 1/8 inch NPT port for standard threaded pipe connections
• Brass body construction for corrosion resistance in fluid and air service
• NBR seal material compatible with a broad range of media
• 0 psi minimum operating pressure differential — no inlet pressure required to actuate
• 6-watt AC coil rating when used with a separately sourced solenoid coil
• Cv factor of 0.12 suited for precision low-flow circuit control

Compatibility

Rated for universal application per supplier data. Supplier documentation references ASCO Number 8320G15 as a related coil designation. Solenoid coils are not included with this valve body and must be ordered separately.

Installation Notes

Installation should be performed by a licensed HVAC technician, pipefitter, or qualified mechanic familiar with pressurized fluid and pneumatic systems. Shut off and depressurize the line before installation or removal. Apply thread sealant to NPT connections per standard practice and verify the coil voltage matches the available power supply before energizing. Do not exceed the 100 psi maximum working pressure rating for this valve body.
