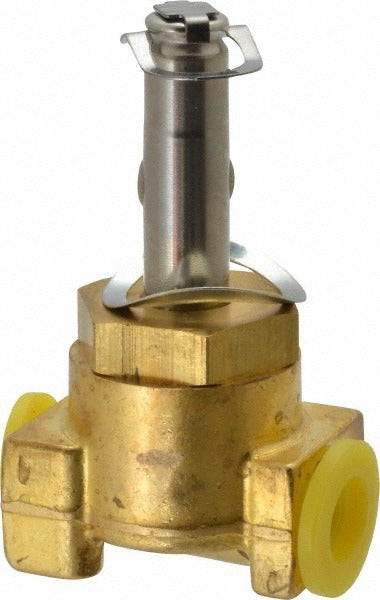

Parker 02F30C1103AAF Solenoid Valve 1/8 in Npt Brass

Product Description

The PARKER 02F30C1103AAF is a direct-acting, normally closed solenoid valve designed for precise fluid and gas control in industrial, commercial, and trade applications. Built with a brass body and NBR seal, this valve accepts a 1/8 inch NPT port and operates at a maximum working pressure of 200 psi. It supports a wide range of input voltages including 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, and 240/60 to 220/50Vac, making it adaptable to many control circuit configurations. The coil is not included and must be sourced separately. Rated at 6 watts, this valve is well-suited for applications where a compact, reliable shut-off solution is required.

The 02F30C1103AAF is rated for universal applications across HVAC, refrigeration, plumbing, and light industrial systems. Its direct-acting design means it opens and closes based solely on coil energization, with no requirement for a minimum pressure differential to operate. This makes it suitable for low-pressure or zero-differential-pressure scenarios. The valve is rated for fluid temperatures up to 180 degrees F, supporting both liquid and gas media in a broad range of system types. Licensed HVAC technicians, pipefitters, and industrial maintenance professionals are the typical installers.

Key Features

• Direct-acting, normally closed operation with zero minimum pressure differential required
• Brass body construction with NBR seal for compatibility with a range of media
• 1/8 inch NPT port for easy integration into standard pipe and tubing assemblies
• Wide voltage compatibility: 12Vdc, 24Vdc, 120Vdc, 24/60Vac, 120/60 to 110/50Vac, and 240/60 to 220/50Vac
• Maximum working pressure of 200 psi with a Cv factor of 0.0600
• CSA Certified, UL Listed, and NEMA 4X rated for use in wet or washdown environments

Compatibility

Rated for universal applications; also referenced under ASCO Number 8320G132. Suitable as a direct-acting solenoid valve replacement in systems requiring a 1/8 inch NPT normally closed valve with the listed voltage and pressure ratings.

Installation Notes

Installation should be performed by a licensed technician familiar with fluid control systems and applicable codes. De-energize and depressurize the system fully before removing or installing the valve. The solenoid coil is not included and must be ordered separately to match the desired operating voltage. Confirm that the body and seal materials are compatible with the media and temperature conditions in the target system before installation.
