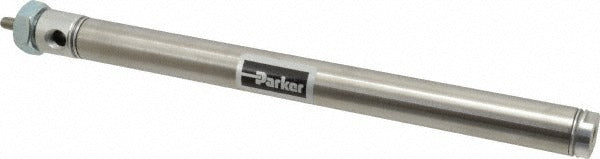

Parker 0.75DSRM08.00 Rodless Air Cylinder 0.75in Bore 8in

Product Description

The PARKER 0.75DSRM08.00 is a double acting rodless air cylinder designed for linear motion control in pneumatic systems. It features a 0.75 inch bore and an 8 inch stroke, with a stainless steel body rated to 250 psi maximum working pressure. The front nose mount style allows for straightforward integration into tight machine frames and automation fixtures. A 1/8 inch NPTF port connects to standard pneumatic supply lines. With an overall width of 0.86 inches, this compact cylinder suits space-constrained applications in industrial and manufacturing environments. Installation is typically handled by millwrights, automation technicians, or maintenance mechanics familiar with pneumatic circuit design.

This cylinder is suited for linear actuation tasks in factory automation, material handling, and machine tool applications where a rodless design conserves axial space. The double acting configuration allows pressurized air to drive the carriage in both directions, providing positive force on the extend and retract strokes. The front nose mount accommodates panel or bracket mounting at the cylinder head, which is common in guided linear slide assemblies and pick-and-place systems.

Key Features

• Double acting design delivers powered motion in both directions
• 0.75 inch bore with 8 inch stroke for compact linear travel
• Stainless steel body for corrosion resistance in washdown or humid environments
• 250 psi maximum working pressure for reliable pneumatic performance
• 1/8 inch NPTF port for leak-resistant connection to pneumatic supply lines
• Front nose mount for straightforward bracket or panel installation
• Nitrile butadiene rubber seals compatible with standard compressed air systems

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic linear motion systems requiring a rodless double acting cylinder with a 0.75 inch bore, front nose mount, and 1/8 inch NPTF porting.

Installation Notes

Shut off and bleed the pneumatic supply before removing or installing the cylinder. Verify supply pressure does not exceed the 250 psi rating of this cylinder. Use thread sealant rated for pneumatic service on the NPTF port connections and torque fittings according to the fitting manufacturer specifications. Ensure mounting hardware is secured and the cylinder carriage travel path is free of obstructions before returning the system to service.
