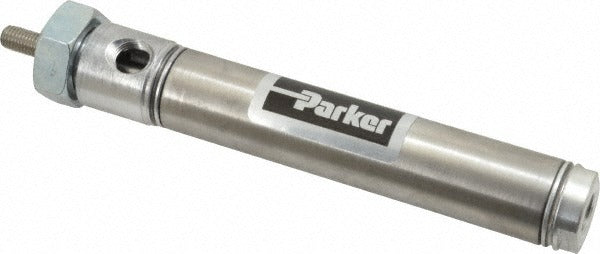

Parker 0.75DSRM02.50 Rodless Air Cylinder 0.75in Bore 250psi

Product Description

The PARKER 0.75DSRM02.50 is a double acting rodless air cylinder designed for compact pneumatic linear motion applications in industrial and automation systems. Built with a stainless steel body, it offers a 0.75 inch bore and a 2.5 inch stroke, generating bidirectional force through air pressure up to 250 psi. The front nose mount style allows secure inline installation in tight spaces. The rod diameter is 0.25 inches with a 1/4-28 male thread, and the 1/8 NPTF port accepts standard compressed air line fittings. This cylinder is installed by industrial maintenance technicians, automation integrators, and mechanical contractors working with pneumatic motion control equipment.

This rodless cylinder is suited for light-duty linear positioning, pick-and-place assemblies, and guided actuator applications where a conventional rod-style cylinder would exceed available envelope space. The 0.86 inch overall width and 5.97 inch overall length make it appropriate for compact fixtures and tooling plates in both production and OEM machine-build environments. The stainless steel construction makes it viable in environments requiring corrosion resistance, such as food processing, washdown zones, and clean-room adjacent areas.

Key Features

• Double acting design provides powered extension and retraction strokes
• Stainless steel body for corrosion resistance in demanding environments
• 250 psi maximum working pressure for reliable force output
• 1/8 NPTF port compatible with standard compressed air fittings
• 1/4-28 male rod thread for direct connection to load hardware
• Front nose mount style for straightforward inline installation

Compatibility

Designed as an OEM-style replacement or direct-fit pneumatic actuator for industrial automation systems requiring a double acting rodless cylinder with a 0.75 inch bore and front nose mount configuration.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance mechanic. Depressurize and lock out the air supply before removing or installing any pneumatic component. Ensure port fittings are rated for the operating pressure and that thread sealant compatible with nitrile seals is used on NPTF connections. Do not exceed the 250 psi rated working pressure, and verify that the mount configuration is properly supported to prevent side loading on the cylinder body.
