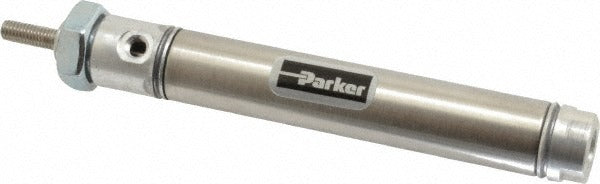

Parker 0.56DSRM02.00 Rodless Air Cylinder 9/16 in Bore

Product Description

The PARKER 0.56DSRM02.00 is a double acting rodless air cylinder built for compact pneumatic linear motion applications. With a 9/16 inch (0.56 inch decimal) bore and a 2 inch stroke, it delivers controlled bidirectional actuation in tight spaces where a traditional rod-style cylinder would not fit. The stainless steel body provides corrosion resistance in demanding environments. Maximum working pressure is 250 psi. The 10-32 UNF port accepts standard miniature pneumatic fittings. Licensed HVAC, industrial, and mechanical technicians install this type of cylinder in automation equipment, light-duty machinery, and pneumatic control assemblies.

This cylinder suits applications requiring compact, rodless linear actuation in corrosive or wash-down-tolerant environments. The front nose mount style allows direct inline mounting to brackets or manifold assemblies. The 0.62 inch overall width makes it suitable for narrow channel or rail-mounted installations. The 10-32 UNF male rod thread end and small form factor are common in instrumentation, light automation, and small pneumatic actuator systems where space is a primary constraint.

Key Features

• Double acting design provides powered extension and retraction for positive control in both directions
• Stainless steel body construction resists corrosion in wash-down or humid service environments
• 250 psi maximum working pressure supports standard shop-air and instrument-air supply systems
• 10-32 UNF port size accepts miniature pneumatic push-to-connect and barb fittings
• Front nose mount allows straightforward inline bracket or panel installation
• Nitrile butadiene rubber (NBR) seals provide reliable air retention across a wide temperature range

Compatibility

Designed as an OEM-style replacement or drop-in addition for compact double acting rodless pneumatic cylinder applications using 10-32 UNF port fittings and front nose mount hardware.

Installation Notes

Installation should be performed by a qualified mechanical or pneumatic technician. Depressurize the air supply and lock out the system before removing or installing any pneumatic cylinder. Ensure port fittings are rated for the working pressure and compatible with the 10-32 UNF thread before connecting. Verify stroke length and mounting clearances against the application before final assembly.
