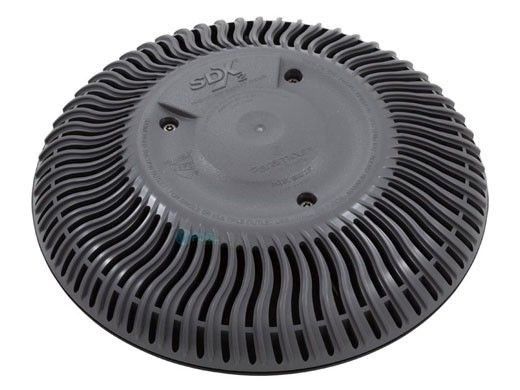

Paramount 004-192-2231-02 SDX2 Retro High Flow Safety Drain for Concrete Pools Gray

Product Description

The Paramount 004-192-2231-02 SDX2 Retro High Flow Safety Drain is essential for concrete pools. This drain is suitable for use as both a wall fitting and a floor drain, ensuring pool safety. It fits existing plaster rings up to 10 inches in diameter and has a flow rating of 188 gallons per minute on the floor and 154 gallons per minute on the wall, compatible with most residential pumps up to 3 horsepower.

• High flow suction outlet
• Retro design fits existing outlets
• Compliant with safety standards

Product Highlights

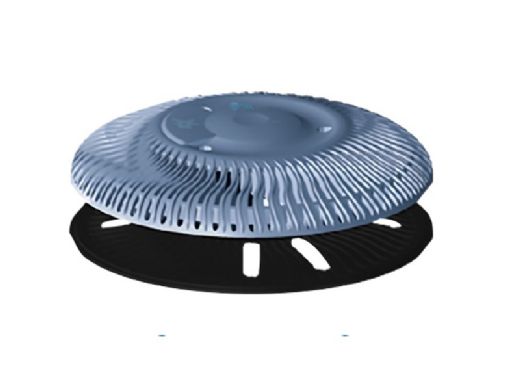

Anti-vortex shield blocks contact with direct suction, and no sump is required for installation, saving time and effort. The dome shape prevents swimmer entrapment, and the ribbed design achieves high flow with sixty mini drains, complying with VGB 2008 and ANSI/APSP-16 2011 standards.

Product Information

Standard Information

• MPN: 004-192-2231-02
• Brand: Paramount
• Category: Drains & Suctions
• Country of Origin: China

Technical Specifications

• Flow rating: 188 gallons per minute (floor), 154 gallons per minute (wall)
• Use case: Wall fitting or floor drain for concrete pools
• Diameter: Fits plaster rings up to 10 inches
• Compliancy: VGB 2008, ANSI/APSP-16 2011, USPC, IRC
• Testing: IAPMO tested and certified
