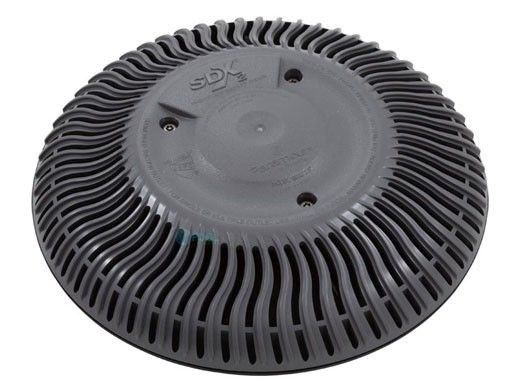

Paramount 004-172-2231-02 SDX2 High Flow Safety Drain for Vinyl and Fiberglass Pools

Product Description

The Paramount SDX2 High Flow Safety Drain, MPN 004-172-2231-02, is designed for vinyl and fiberglass pools. This two-pack drain provides efficient water flow while adhering to safety requirements. Features include no need for a sump, low velocity flow rating, and a patented ribbed design for enhanced water flow.

• No sump required for easier installation.
• Low velocity at one point three nine six feet per second with a maximum flow rate of one hundred eighty-eight gallons per minute.

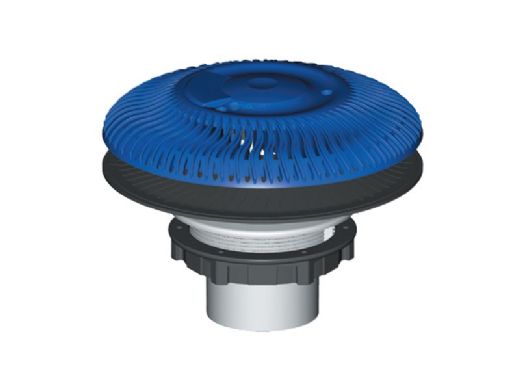

• Includes a plaster ring for new applications and comes with a retrofitting backplate for suction fittings up to ten inches diameter.

Product Highlights

This drain is approved as a bulkhead fitting, ensuring safety through its cover and backplate design. The anti-vortex shield minimizes suction issues. The SDX2 is suitable for new setups and retrofits alike.

Product Information

Standard Information

• Brand: Paramount Leisure Industries
• Category: Drains & Suctions

Technical Specifications

• MPN: 004-172-2231-02
• Flow Rating: 188 gpm
• Maximum Velocity: 1.396 feet per second
• Pack Size: 2
• Compatible Fittings: Up to 10 inches diameter
