Paragon Electric 8145-20 D-Frost-O-Matic Time Control

Product Description

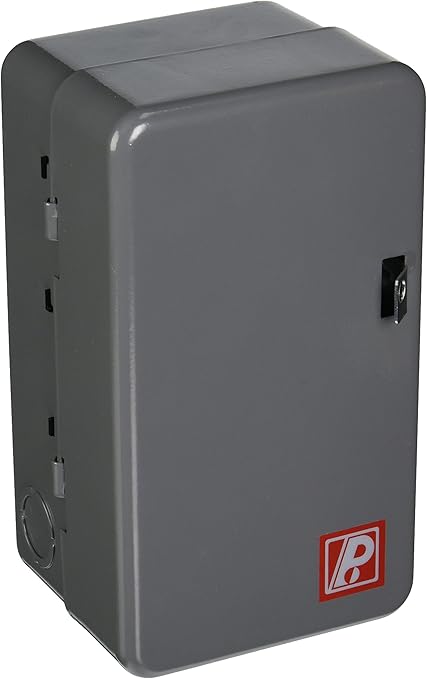

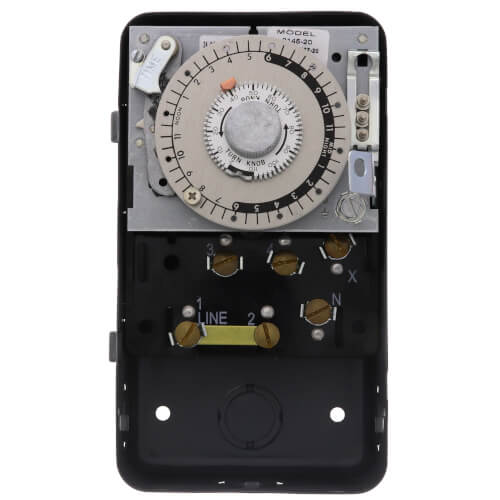

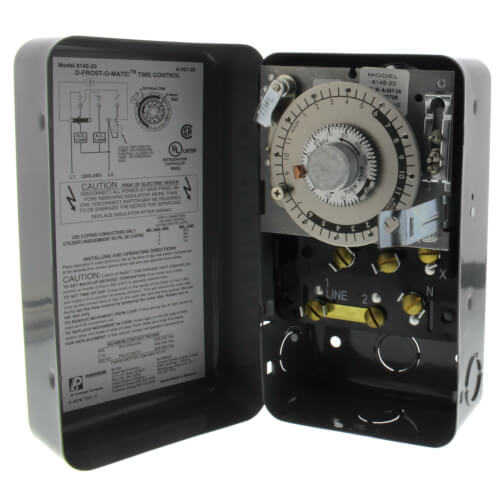

The PARAGON ELECTRIC 8145-20 D-Frost-O-Matic Time Control is designed for commercial freezers and refrigerators, providing automatic defrost capability. It accommodates electric defrost heaters, hot gas, and compressor off cycle systems. The timer features a positive slider bar switch design and a heavy-duty synchronous design drive motor. Enclosure is constructed of heavy-duty steel.

• Time initiated switching with 1 N.O. and 1 N.C.
• High-amp switch contacts: 40 Amps, 2 HP
• Adjustable frequency of defrost initiation from 1 to 6 cycles per day

Product Highlights

The PARAGON ELECTRIC 8145-20 is a commercial defrost control with adjustable defrost frequency and heavy-duty steel enclosure.

Product Information

Standard Information

• Brand: PARAGON ELECTRIC
• Manufacturer Part Number: 8145-20

Technical Specifications

• Voltage: 208/240V
• Defrost Cycles: 6
• Series Application: Electric Heat, Hot Gas or Compressor Shutdown
• Electrical Rating: 208-240V AC, 60 Hz; 208-240V AC, 50 Hz
• Switch Rating: 40 Amps, 2HP, 120-240V AC
• Initiation/Termination Type: Time / Temperature or Pressure
• Enclosure: Heavy Duty Steel
• Switch Arrangement for Contacts 1-3: Open
• Switch Arrangement for Contacts 2-4: Closed
• Switch Arrangements for Contacts 3-N: None
• Comments: Bracket available & 50 Hz
• Agency Rating: UL Listed|UL Recognized
• Material: Steel
