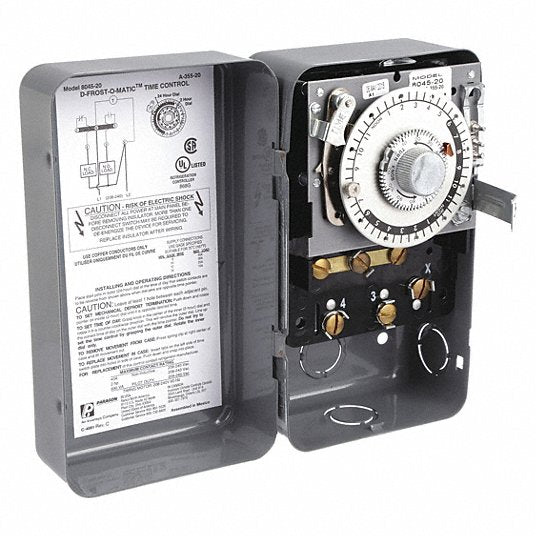

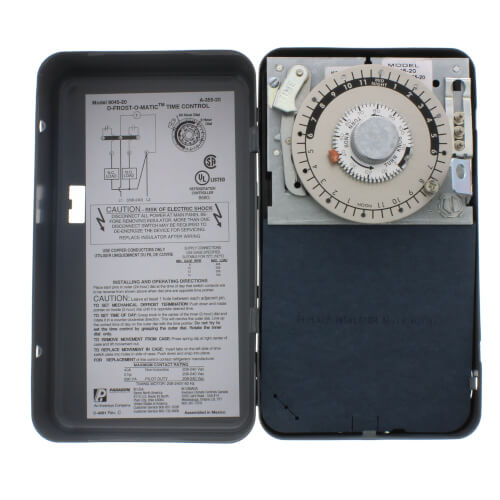

Paragon Electric 8045-20 Commercial Defrost Timer 208/240V

Product Description

The PARAGON ELECTRIC 8045-20 commercial defrost timer is designed for commercial freezers and refrigerators, providing automatic defrost capability. It accommodates various defrost systems, including electric defrost heaters, hot gas, and compressor off cycle. The timer is time initiated, with temperature or pressure terminated models available.

• Accommodates electric defrost heaters, hot gas, and compressor off cycle systems
• Adjustable frequency of defrost initiation from 1 to 6 cycles per day
• Heavy-duty steel enclosure with knockouts on the bottom, back, and sides

Product Highlights

This timer ensures accurate and efficient defrost cycles to maintain optimal freezer performance. It is a reliable replacement part for commercial refrigeration systems.

Product Information

Standard Information

• Brand: PARAGON ELECTRIC
• Manufacturer Part Number: 8045-20
• Country of Origin: Mexico

Technical Specifications

• Volts: 208-230/1/60
• Manufacturer: Paragon Electric
• Major Category: Refrigeration
• Sub Category: Equipment & Controls
• Product Type: Temperature Controls
• Features: NEMA-1 Enclosure
• Voltage: 240 V
• Defrost Cycles: 6
• Series Application: 8045 Series Electric Heat, Hot Gas, or Compressor Shutdown Defrosting
• Electrical Rating: 208-240V AC, 60 Hz; 208-240V AC, 50 Hz
• Switch Rating: 120-240V AC, 690VA pilot duty, 40 Amps, 2HP (per pole)
• Enclosure: Heavy Duty Steel
• Adjustable Length of Defrost: 4-110 minutes
• Switch Arrangement for Contacts 1-3: Open
• Switch Arrangement for Contacts 2-4: Closed
• Switch Arrangements for Contacts 3-N: None
• Agency Rating: UL Listed|UL Recognized
• Applicable AC Voltage Ranges: 208/240V AC
• Brand: PARAGON
• Contact Form: SPDT-NO/NC
• Current Rating: 40 A
• Defrost Cycle Time - Maximum: 110 min
• Defrost Time - Minimum: 4 min
• Enclosure Material: Steel
• Horsepower @ 120V - Maximum: 2 hp
• Horsepower @ 240V - Maximum: 2 hp
• Housing Material Type: Metallic
• Initiation: Time
• Manufacturer Part Number: 8045-20
• NEMA Enclosure Rating: 1
• On/Off Cycles - Maximum: 6
• Series: 8000
• Standards: UL Listed
• Termination: Time
• Timer Switch Type: Mechanical
• Amperage: 40 A
• Compatible Model: Various
• Material: Metal
• Model: 8045-20
