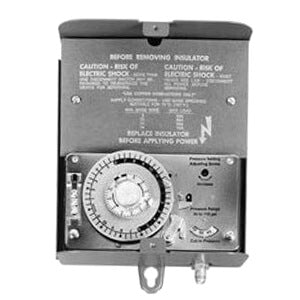

Paragon 8245-00 120V Defrost Timer

Product Description

The Paragon 8245-00 is a 120V defrost timer designed for controlling the defrost cycles of refrigeration systems. This timer is time-initiated and pressure-terminated, making it suitable for various applications.

• Adjustable defrost cycles from one to six times per day
• Heavy-duty construction with a steel enclosure and options for sub-panel mounting
• UL Listed and CSA certified for safety and reliability

Product Highlights

This defrost timer features a frequency of defrost that ranges from one to six cycles per day, with a minimum of four hours between cycles. It also includes an adjustable back-up defrost termination range from four to one hundred ten minutes, which allows for fine-tuning based on specific requirements. The choice of three contact arrangements supports hot gas, electric heat, or compressor shutdown defrost methods.

Product Information

Standard Information

• Brand: Paragon
• MPN: 8245-00

Technical Specifications

• Voltage: 120 volts AC
• Switch Ratings: 40 amp, 2 hp, 690 VA pilot duty
• Defrost Cycles: Up to 6 cycles per day
• Weight: 6.4 pounds
• Shipping Dimensions: 12 inches (L) x 10 inches (W) x 12 inches (H)
• Operating Frequency: 60 Hz
• Cut-in Pressure Setting: 36 - 110 pounds
• Heavy Duty Motor: Synchronous industrial type
