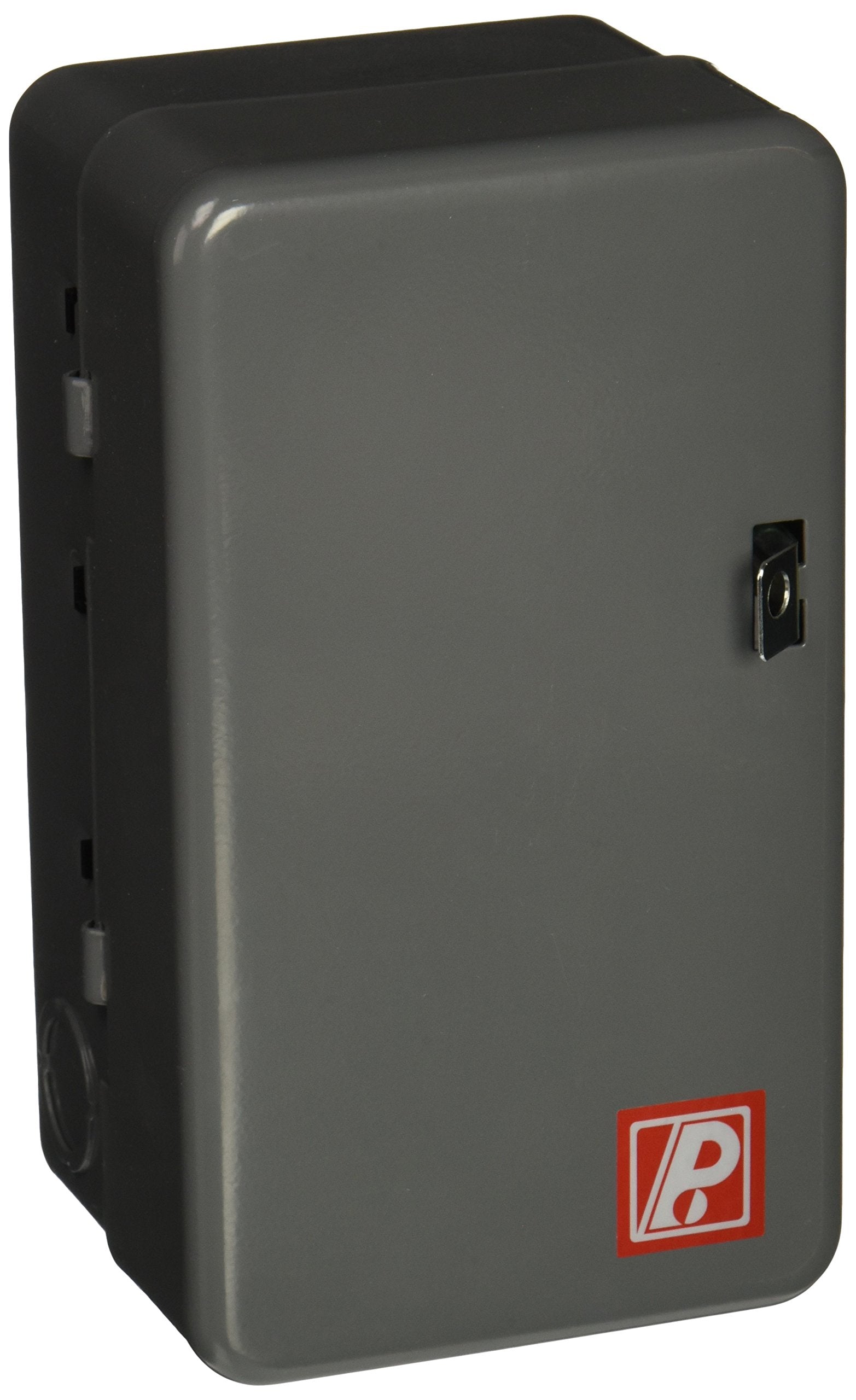

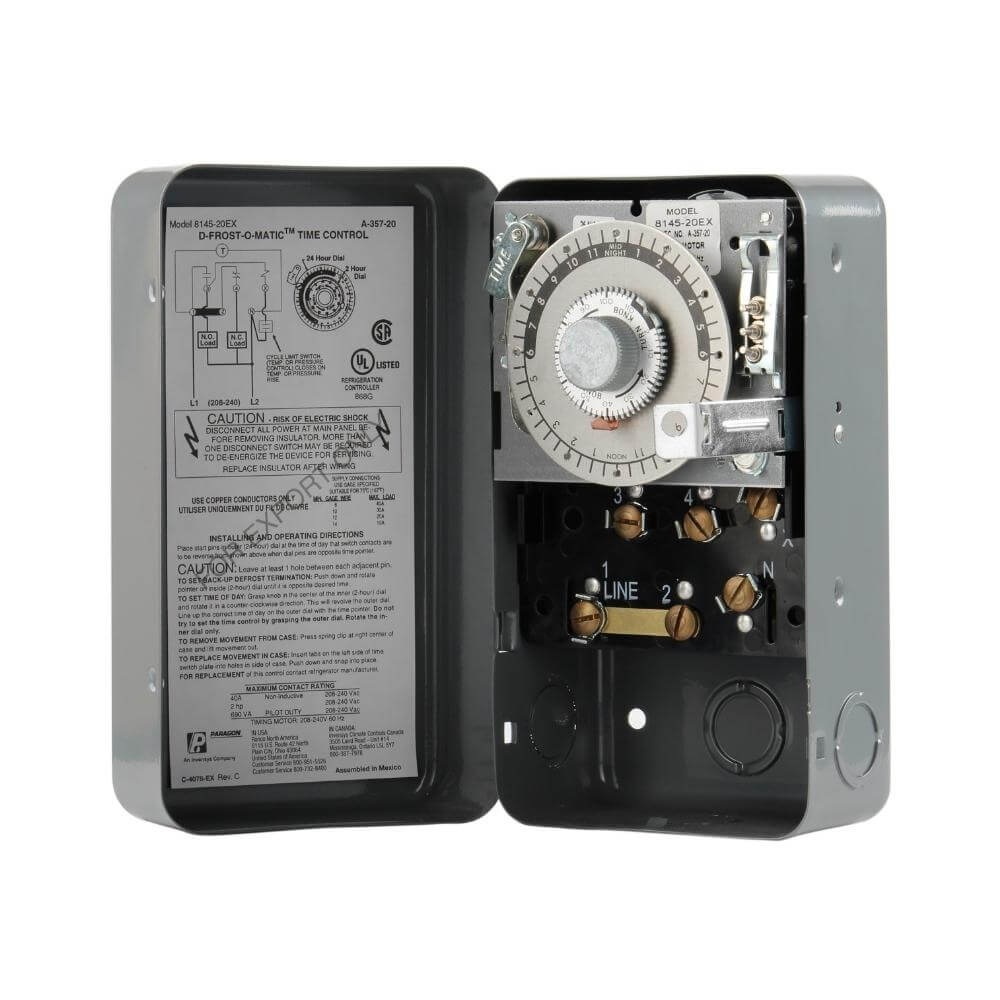

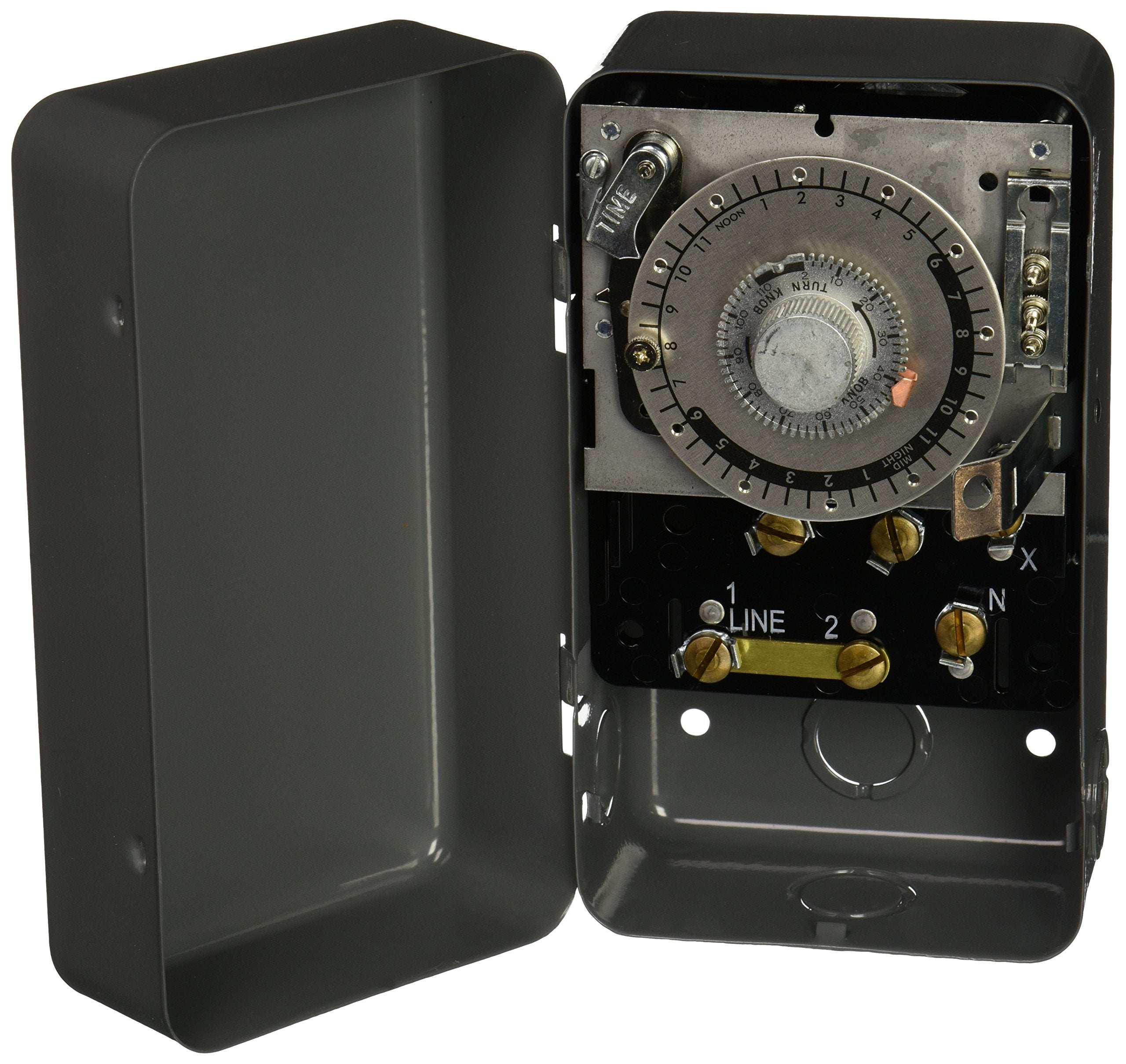

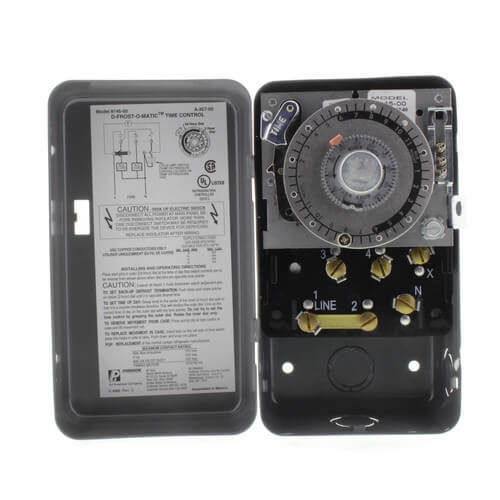

Paragon 8145-00 Refrigeration Defrost Timer 2 HP (120V)

Product Description

Paragon 8145-00 is a refrigeration defrost timer intended for commercial freezers and refrigerators that provides time-initiated defrost with temperature, pressure, or time termination options. It supports adjustable defrost initiation from 1 to 6 cycles per day with a minimum 4-hour interval and adjustable back-up defrost termination from 4 to 110 minutes in 2-minute increments. The control uses a heavy-duty synchronous drive motor, 40 A/2 HP switch contacts, and a steel enclosure with knockouts and padlock hasp.

• Time-initiated operation with temperature, pressure, or time termination; adjustable 1 to 6 cycles per day, minimum 4 hours between operations
• High-amp contact rating: 40 Amp, 2 HP; switch rating up to 120–240 VAC, 690 VA; switch type 1NO-1NC (SPDT)
• Heavy-duty synchronous drive motor and steel enclosure with knockouts plus mechanical time-driven safety back-up

Product Highlights

Time-initiated defrost control; adjustable cycles and duration; 40 A/2 HP contacts; UL listed; heavy-duty steel enclosure.

Product Information

Standard Information

• Brand: PARAGON
• Manufacturer Part Number: 8145-00

Technical Specifications

• Brand: Paragon
• Manufacturer Part Number: 8145-00
• Series: 8000
• Function: Defrost timer
• Type: Electromechanical
• Input Voltage: 120 Volt AC
• Frequency: 50/60 Hz
• Power Rating: 2 HP
• Output/Contact Rating: 40 Amp, 2 HP; switch rating 120 to 240 Volt AC, 690 VA
• Switch Type: 1NO-1NC (SPDT)
• Number of Defrost Cycles: 1 to 6 per day
• Minimum Interval Between Operations: 4 hours
• Defrost Duration Range: 4 to 110 minutes
• Defrost Duration Increment: 2 minutes
• Defrost Duration Accuracy: +/- 2 minutes (time-terminated mode)
• Motor Type: Heavy-duty synchronous drive motor
• Enclosure Material: Heavy duty steel
• Enclosure Features: Knockouts on bottom, back and sides; hasp and staple for padlock
• Termination Options: Time initiated; temperature or pressure terminated; time-terminated backup
• Safety Backup: Mechanical time-driven defrost termination
• Applications: Commercial freezers, refrigerators, electric heat, hot gas, compressor shutdown
• Agency Approvals: UL listed (Canada and US)
• UNSPSC Code: 39121523
• Commodity Code Description: Defrost Timer Control
