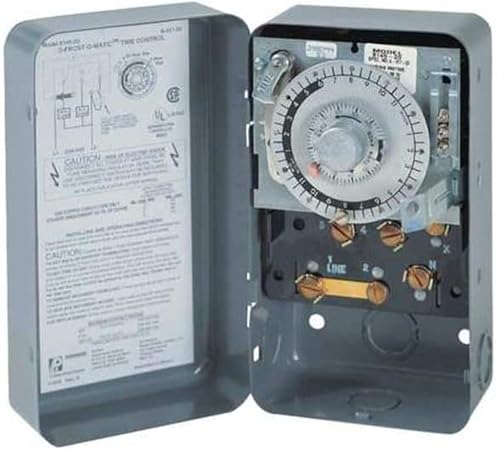

Paragon 8041-20 Commercial Defrost Timer 240V (Each) 7008-016

Product Description

Paragon 8041-20 is a commercial defrost timer designed for electric heat defrost control in refrigeration and freezer equipment. It operates on 240V AC and provides time-initiated defrost scheduling with mechanical time-driven safety backup. The unit features adjustable defrost initiation and termination settings, heavy-duty construction, and high-amp switch contacts suitable for commercial HVAC and refrigeration applications.

• Electrical rating: 240V AC; high-amp switch contacts rated 40 A, 2 HP
• Adjustable defrost initiation 1 to 6 cycles per day and adjustable defrost time 4 to 110 minutes in 2-minute increments
• Heavy-duty synchronous drive motor, positive slider bar switch design, steel enclosure with knockouts and padlock provision; UL listed

Product Highlights

Commercial electric heat defrost timer, 240V AC, 40 A, adjustable 1–6 cycles/day, 4–110 min backup

Product Information

Standard Information

• Brand: PARAGON
• Manufacturer Part Number: 8041-20
• Country of Origin: Mexico

Technical Specifications

• Brand: Paragon
• MPN: 8041-20
• Product Type: Defrost Timer / Defrost Control
• Function: Defrost
• Voltage: 240V AC
• Amps: 40 A
• Switch Rating: 40 A, 2 HP (per pole)
• Contact Type: 1 NO / 2 NC
• Contact Arrangement: Closed/Open/Closed
• Defrost Initiation Frequency: Adjustable 1 to 6 cycles per day (minimum 4 hours between cycles)
• Defrost Time: Adjustable 4 to 110 minutes in 2-minute increments
• Drive Motor: Heavy-duty synchronous motor
• Switch Design: Positive slider bar switch
• Enclosure: Heavy-duty steel with knockouts and hasp-and-staple padlock provision
• Termination Type: Mechanical time-driven safety back-up
• UL Listing: UL Listed
• Intended Use: Commercial freezers and refrigerators; supports electric defrost heaters, hot gas, and compressor off-cycle systems
• Country of Origin: Mexico
