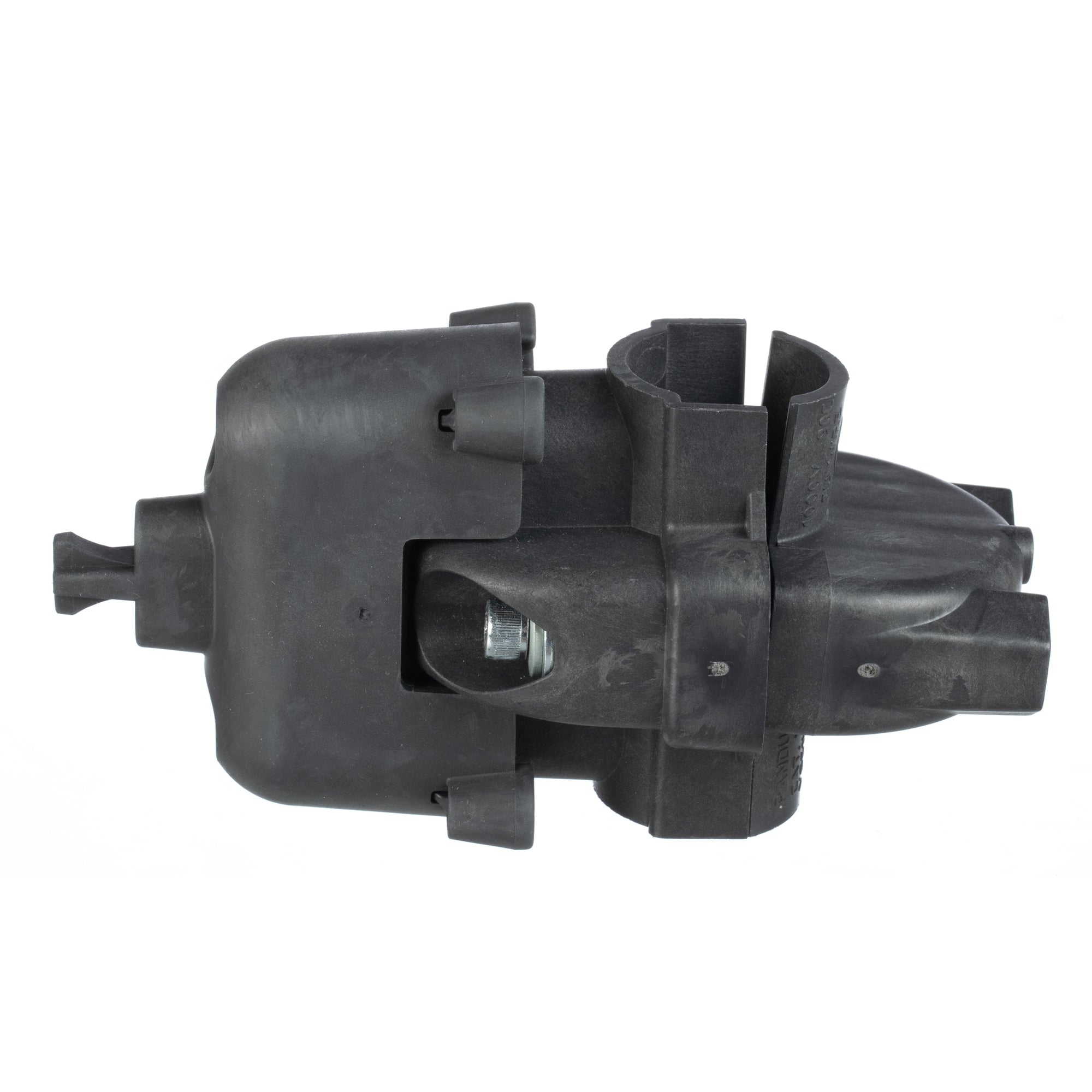

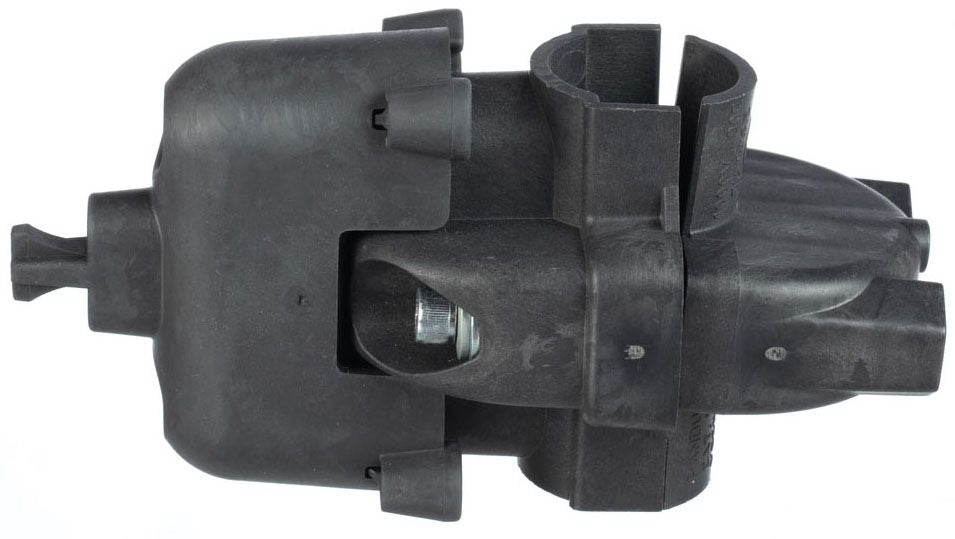

Panduit VS-CKP1K4/0-500 VeriSafe Insulation Piercing Connection Kit for AWG 4/0 to 500 MCM

Product Description

The Panduit VS-CKP1K4/0-500 is an insulation piercing connection kit designed for tapping AWG four aught to five hundred MCM copper conductors. This kit supports rated installations of up to one kilovolt. It includes three connectors for the installation of one Automatic Voltage Tester (AVT).

• Connects AWG 4/0 to 500 MCM conductors
• Supports installations rated up to 1,000 volts
• Includes three connectors for efficient installation

Product Highlights

This kit allows for quick and secure connections without removing insulation. It's suitable for new installations or retrofits, providing flexibility in connection approaches.

Product Information

Standard Information

• Catalog Number: VS-CKP1K4/0-500
• Manufacturer: Panduit

Technical Specifications

• Application: For testing three-phase circuits up to 1,000 V, installs on line or load side of electrical disconnect, detects absence of AC and DC voltage
• Dimensions: 0.081 m L
• Includes: (3) Connectors for installation of (1) AVT
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS
• Suitable For Use With: Tapping AWG 4/0 to 500 MCM Copper Conductors
• Country of Origin: United States
• Made in USA: Yes
• UPC: 613056812994
