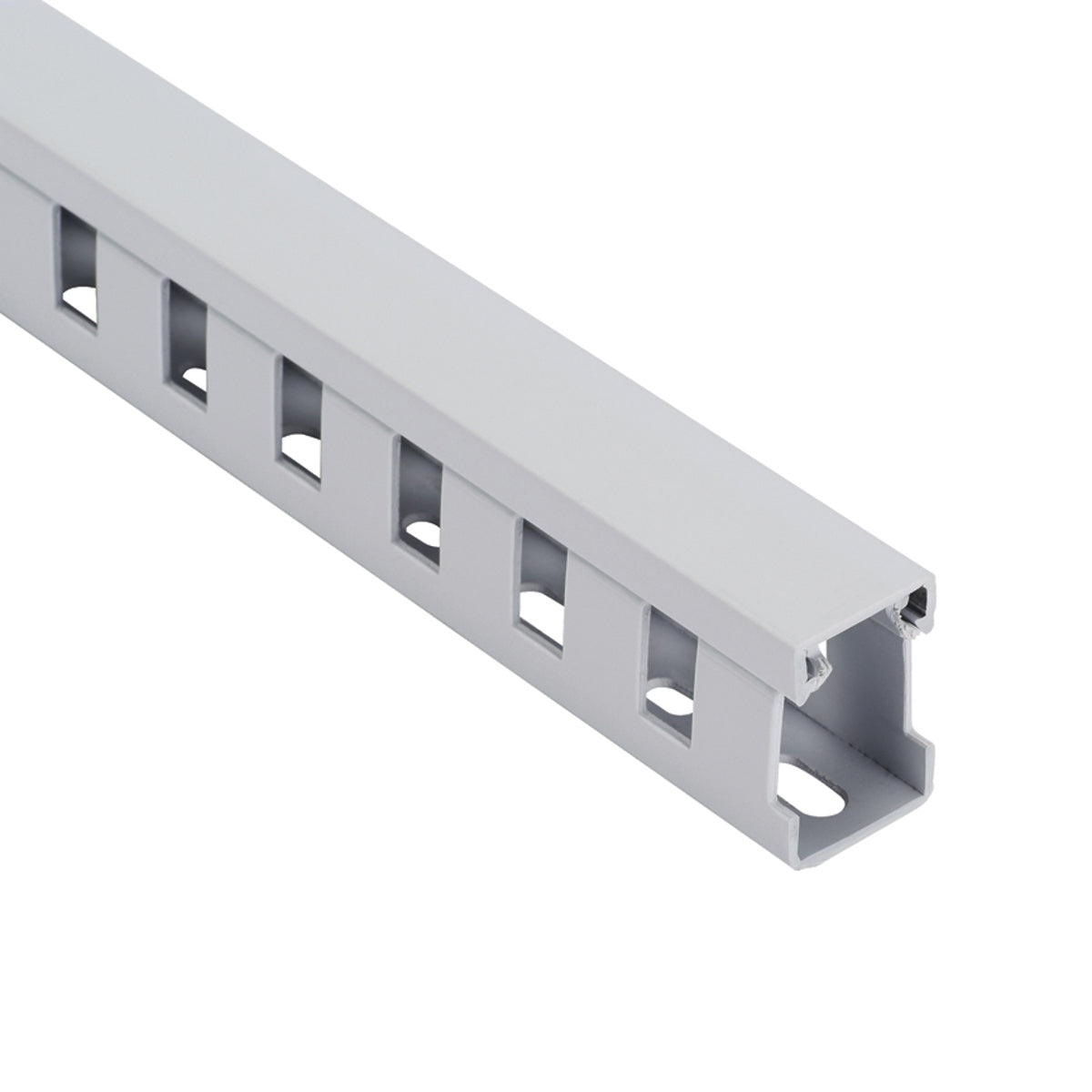

Panduit TNC25X37LG2 Panduct Base/Cover

Product Description

The PANDUIT TNC25X37LG2 Panduct base and cover is a type TNC slotted wall wiring duct designed to route, protect, and manage electrical and communication cabling. Measuring 24.6mm W x 35.8mm H and 6.6' in length, it is made from PPE + HIPS material. Base and cover are packaged together.

• Designed for seamless DIN mounting
• Crafted from durable polyphenylene ether and high impact polystyrene
• Features a .39-inch slot width

Product Highlights

This wiring duct is RoHS compliant and UL recognized, ensuring both performance and environmental responsibility.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: TNC25X37LG2
• Country of Origin: United States

Technical Specifications

• Catalog Number: TNC25X37LG2
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• Application: (1) Type TNC Wiring Duct Routes, Protects, and Manages Electrical and Communication Cabling in Control Panels and Wire Routing Applications that Require Enhanced Material Performance for Fire Safety such as in Light Rail and Transit Systems, Commuter Bus
• Color: Light Gray
• Connection: DIN Mounting Holes
• Material: PPE/HIPS
• Slot Pitch: 0.39 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized
• Item Type: Wiring Duct Base with Cover
• Width: 0.97
• Width UOM: Inch
• Size: 0.97 x 1.41
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.56' (2.00m)
• Series: PANDUCT Type TNC
• Mounting Type: Screw
• Packaging: Bulk
• Features: Separate Snap in Lid (Included)
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), 2 Piece
• Height: 1.300" (33.02mm)
• Base Product Number: TNC25X
• Overall Width: 24.6 mm, .97 in
• Overall Height: 1.47 in, 37.5 mm
• Overall Length: 2 m, 6.6 ft
• Includes: Cover
• Slot Width: .39 in, 9.9 mm
• Product Type: Slotted Wall Wiring Duct
• Type: TNC Slotted
• Flammability Rating: UL94 V-0
• Color Family: Gray
• Brand Name: Panduit
• Manufacturer Part Number: TNC25X37LG2
• Product Name: Panduct TNC25X37LG2 Base/Cover
• External Height - Metric: 37.4mm
• External Width - Metric: 24.6mm
• Length - Metric: 2m
• External Height - Imperial: 1.47"
• External Width - Imperial: 0.97"
• Length - Imperial: 6.56ft
• Raceway / Duct Color: Light Gray
• Raceway / Duct Material: MPPO (Modified Polyphenylene Oxide)
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
