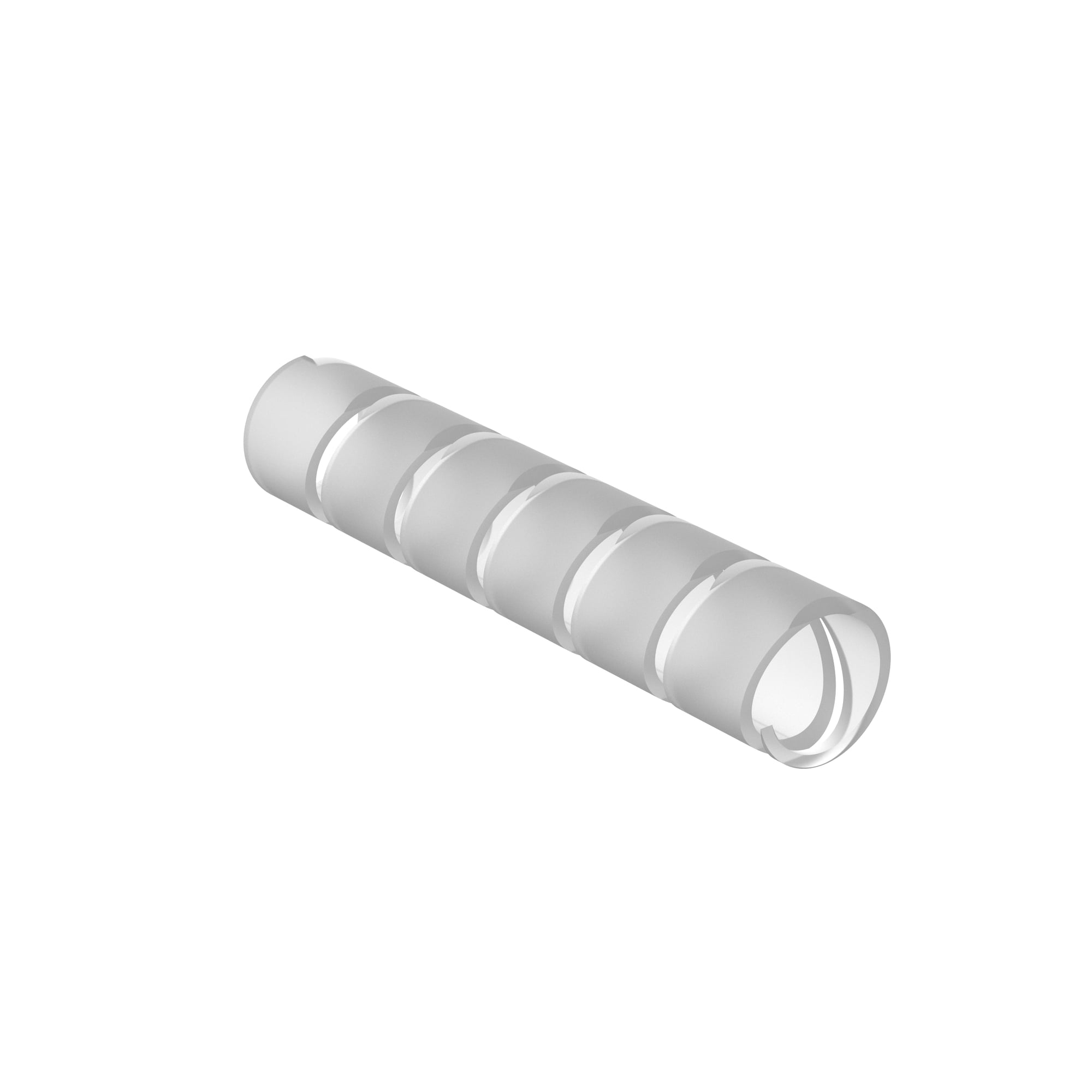

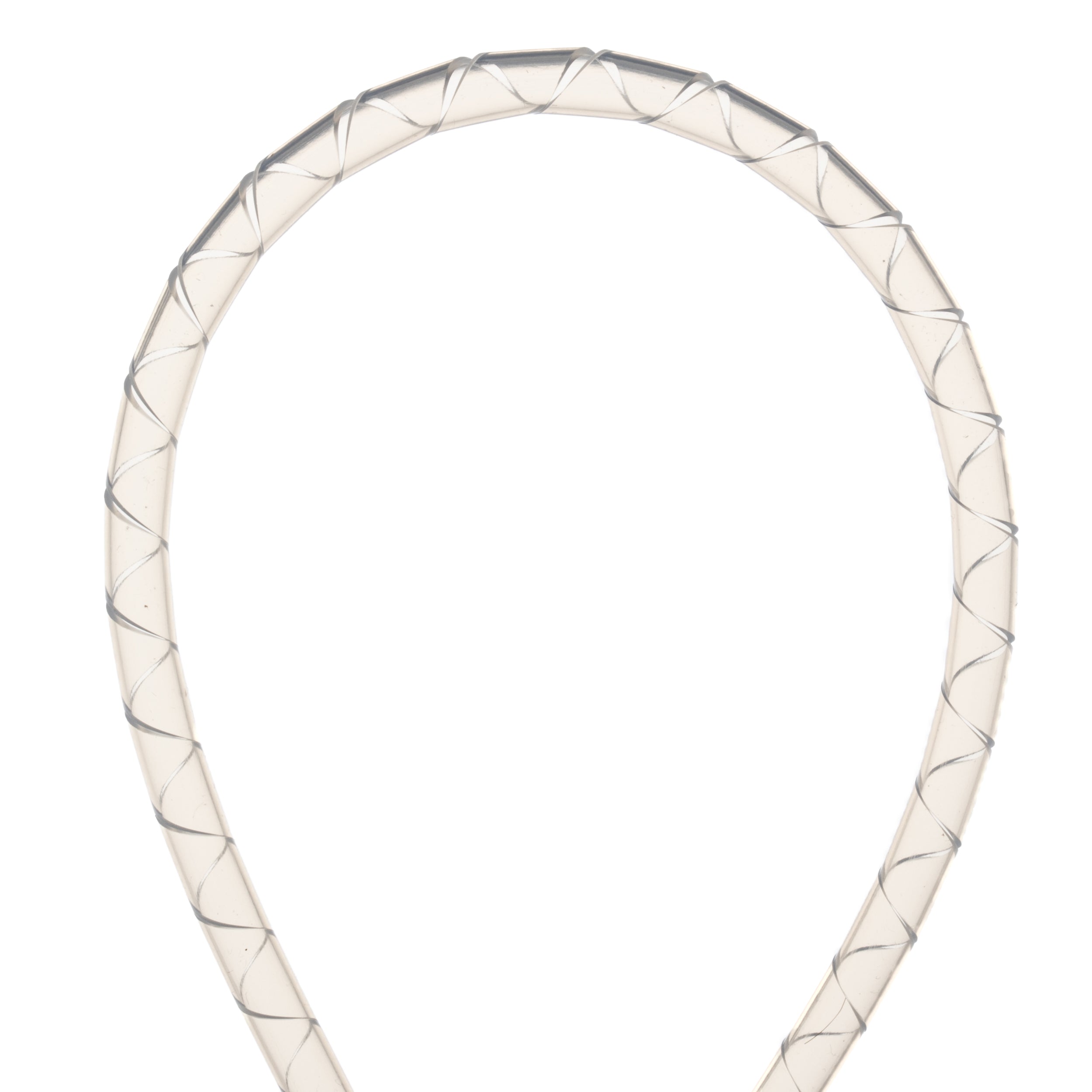

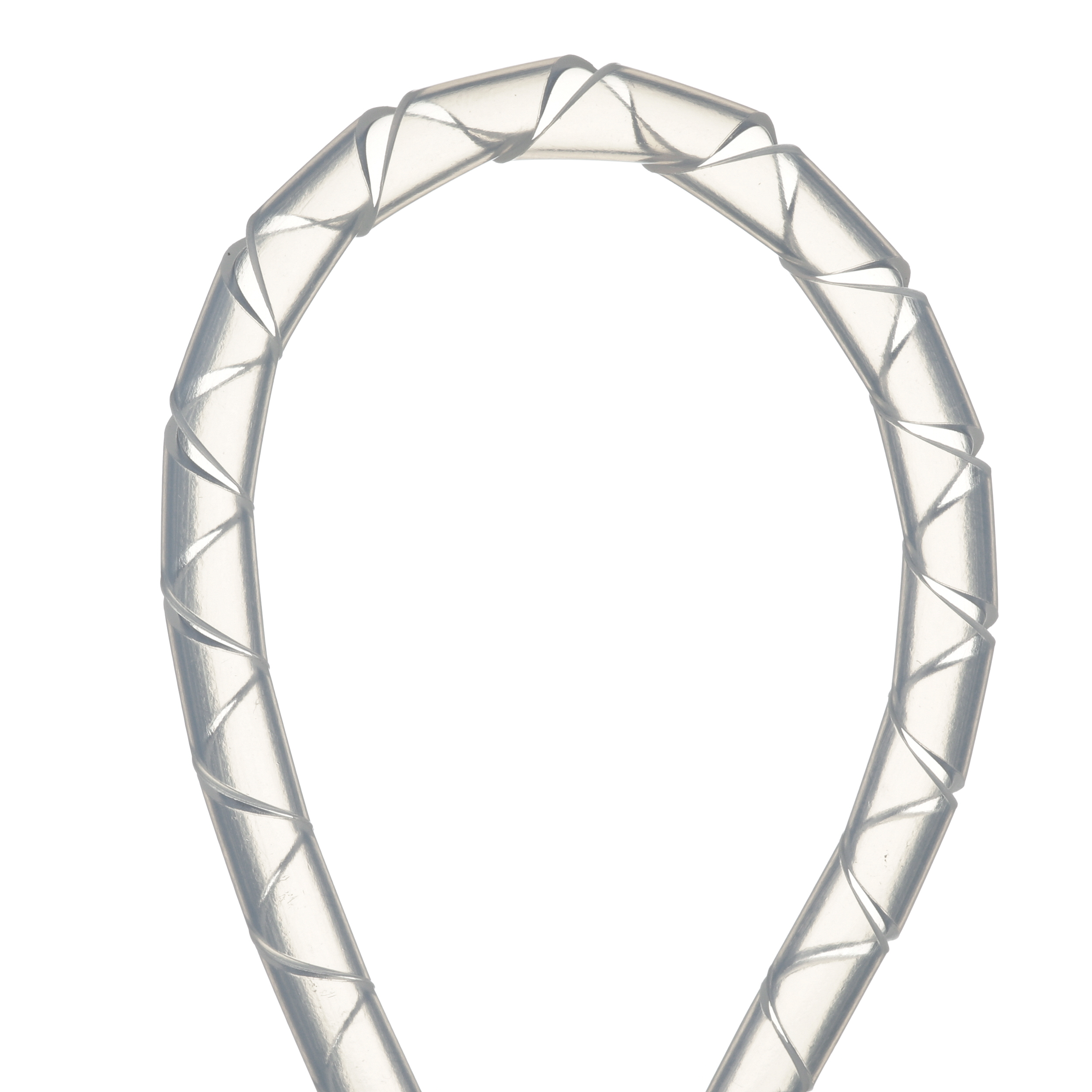

Panduit T25T-L Spiral Wrap Cut Tubing 1/4 in x 50 ft

Product Description

Panduit T25T-L is a PTFE spiral wrap cut tubing that provides abrasion protection for wire, cables, hoses, and tubing. The wrap has a 0.25 in (6.4 mm) outside diameter, 0.03 in (0.8 mm) wall thickness, and is supplied on 50 ft (15.2 m) reels. It accommodates bundle diameters from 0.18 in to 2 in, features a 3/8 in pitch, includes an installation tool, and is rated -454 to 356 deg F (-270 to 180 deg C) with UL94 V-0 recognition.

• PTFE material with 0.25 in (6.4 mm) outside diameter and 0.03 in (0.8 mm) wall thickness for abrasion protection
• Supports bundle diameters 0.18 in to 2 in (4.8 mm to 50.8 mm); 3/8 in pitch; supplied on 50 ft (15.2 m) reels
• Temperature rated -454 to 356 deg F (-270 to 180 deg C); UL94 V-0 flammability rating; installation tool included; reusable

Product Highlights

PTFE spiral wrap, 0.25 in x 50 ft, 0.03 in wall, bundle range 3/16 in to 2 in, -454 to 356 deg F, UL94 V-0

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: T25T-L
• Country of Origin: United States

Technical Specifications

• Brand: Panduit
• Manufacturer Part Number: T25T-L
• Part Number: T25T-L PAN
• Type: Spiral wrap (cut tubing, reusable reverse cut)
• Material: PTFE (polytetrafluoroethylene)
• Outer Diameter: 0.25 in (6.4 mm)
• Wall Thickness: 0.03 in (0.8 mm)
• Length: 50 ft (15.2 m)
• Pitch: 3/8 in
• Maximum Bundle Diameter: 2 in (50.8 mm)
• Minimum Bundle Diameter: 0.18 in (4.8 mm)
• Temperature Rating: -454 to 356 deg F (-270 to 180 deg C)
• Flammability Rating: UL94 V-0
• Standards/Approvals: ARRA Compliant; Buy American Act Compliant; RoHS Compliant; UL Listed File No. E141152
• Includes: Installation tool
• Reusable: Yes
• Application: Abrasion protection and cable bundling; allows breakouts of single or multiple cables
• Country of Origin: United States
