Product Description

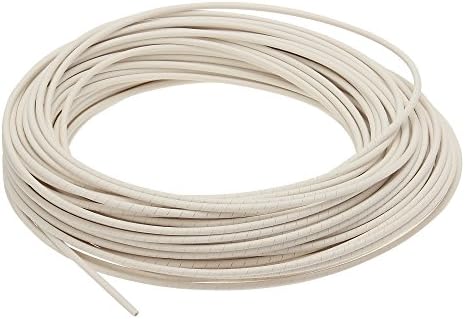

The Panduit T25R-CY is a spiral wrap that offers abrasion protection for wires, cables, hoses, and tubing. Constructed from fire-resistant polyethylene, this wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. It measures .25" x 100' and is RoHS compliant.
- Harness multiple cables into a single manageable bundle
- Allows breakouts of single/multiple cables
- Provides abrasion protection for wire, cables, hoses and tubing
Product Highlights
This spiral wrap provides reliable abrasion protection in demanding environments and ensures both safety and functionality.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: T25R-CY
-
Country of Origin: US - United States
Technical Specifications
-
Brand: Panduit
-
Color: Natural
-
Material: Polyethylene
-
Style: Spiral
-
Enclosure Material: Fire Resistant Polyethylene
-
Manufacturer: Panduit Corp
-
Manufacturer Part Number: Panduit T25R-CY
-
Maximum Operating Temperature: 50 00b0C
-
Minimum Operating Temperature: -40 00b0C
-
Overall Length: 100 ft, 30.5 m
-
Maximum Bundle Diameter: 2 in, 50.8 mm
-
Wall Thickness: 0.04 in, 1 mm
-
Flammability Rating: V-2
-
Product: Cable Spiral Wraps
-
Product Type: Spiral Wrap
-
Minimum Bundle Diameter: .18 in, 4.8 mm
-
SKU: PANT25R-CY
-
Series: T
-
Packaging: Bulk
-
Operating Temperature: -40 00b0C ~ 50 00b0C
-
Type: Spiral Wrap
-
Heat Protection: Fire Resistant
-
Type Attributes: Harness
-
Abrasion Protection: Abrasion Resistant
-
Diameter - Inside, Expanded: 2.000" (50.80mm)
-
Material Flammability Rating: UL94 V-2
-
Diameter - Outside, Non-Expanded: 0.250" (6.35mm)
-
Base Product Number: T25
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
HTSUS: 3926.90.9989
-
REACH Status: REACH Unaffected
-
UNSPSC: 39131604
-
Standard: UL Recognized - E141152; UL94V-2
-
Application: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
-
Bundle Diameter: 2 in.
-
Outer Diameter: 0.25 in.
-
Color Family: Natural
-
Max. Temperature Rating: 122 00b0F
