Product Description

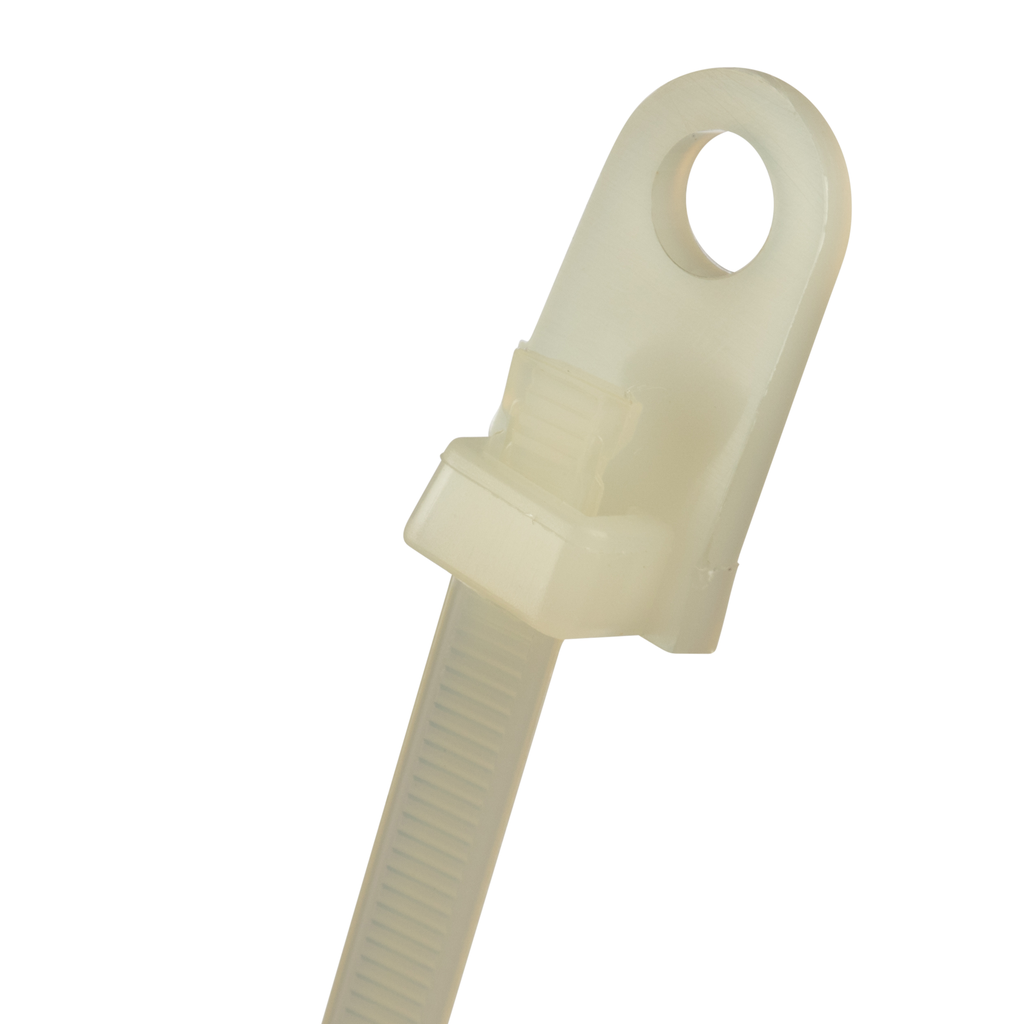

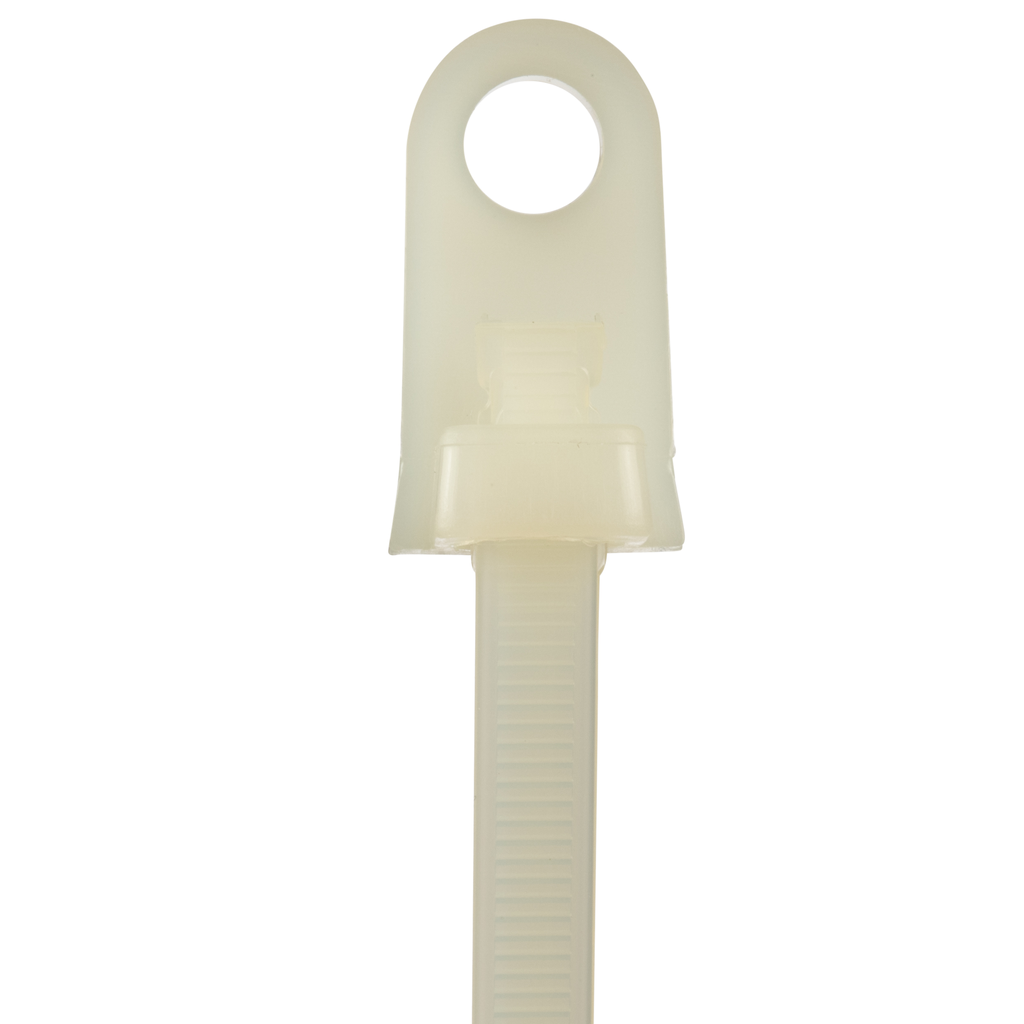

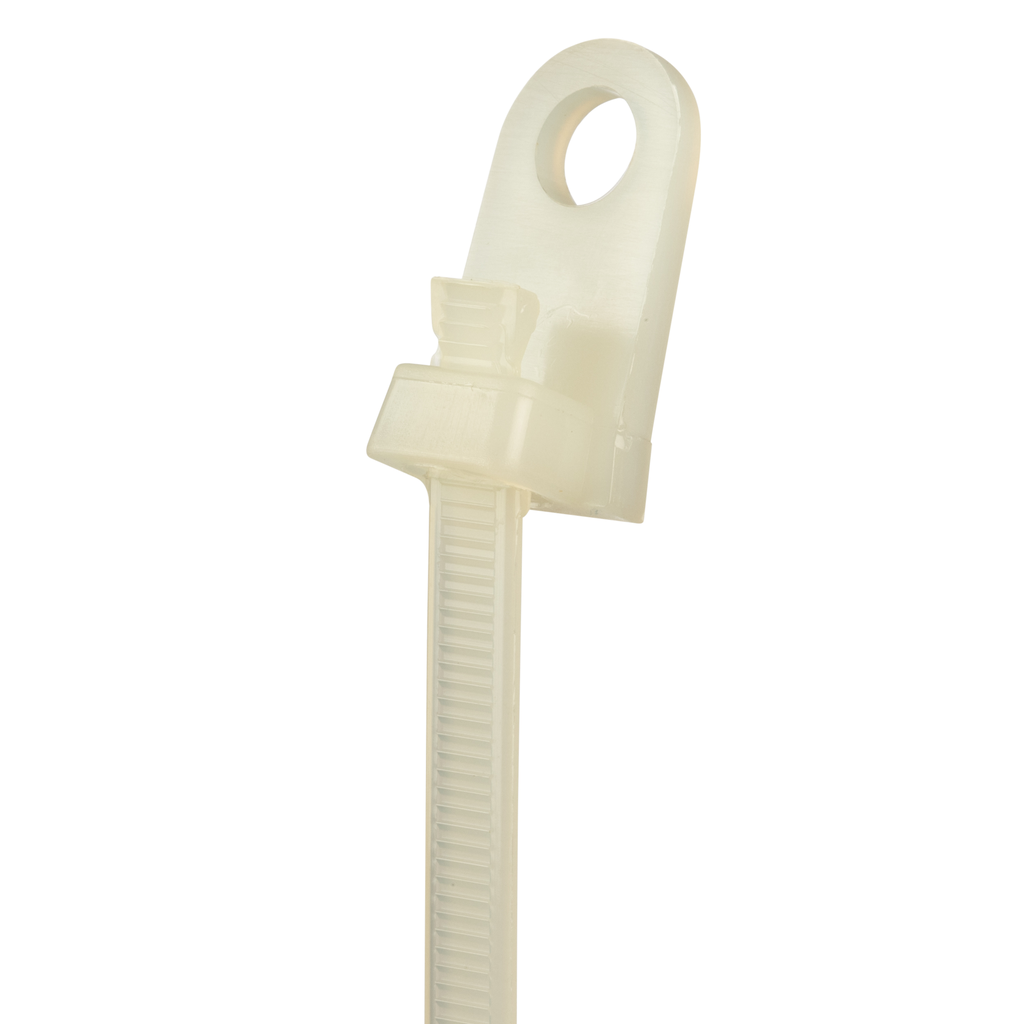

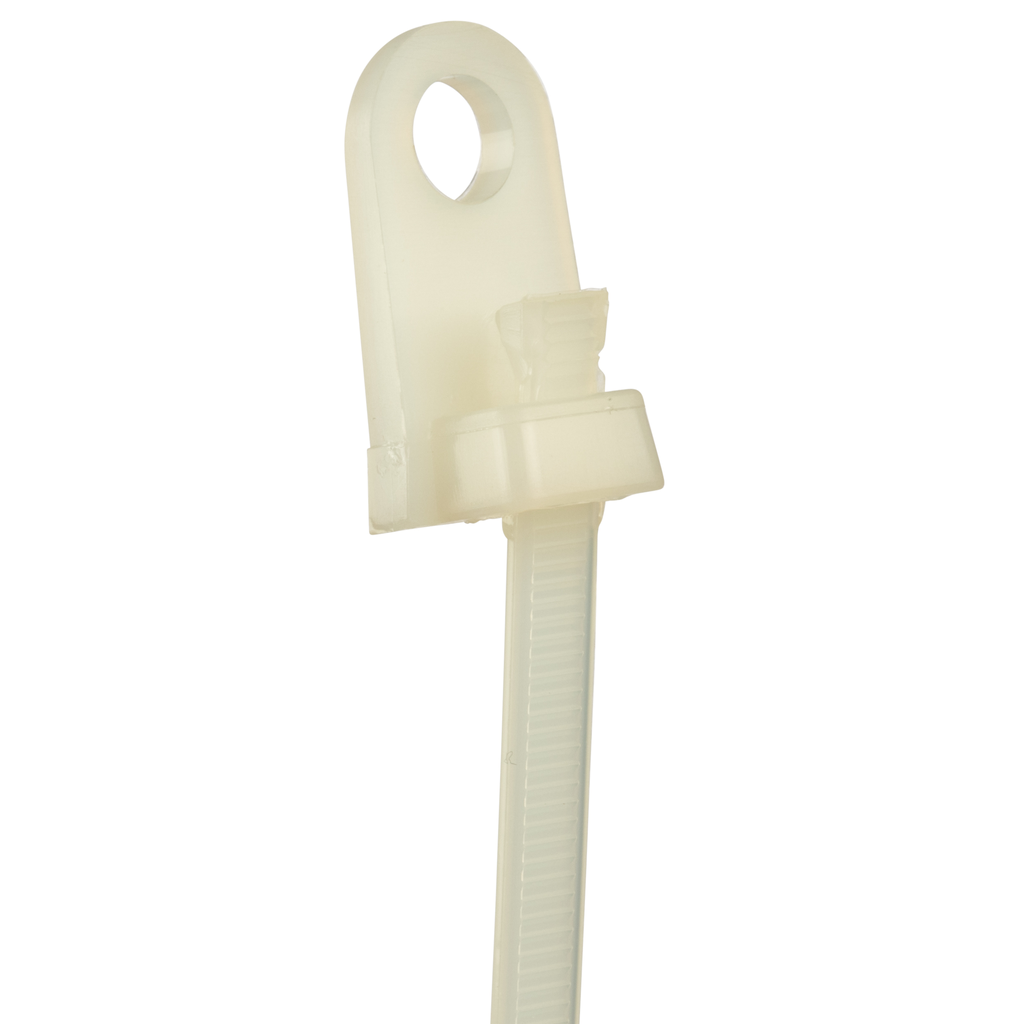

The Panduit SSC2S-S10-C cable tie mount is a standard, releasable clamp designed for cable management. It features a screw mount and is constructed from durable polyamide (PA66), Nylon 6/6 material. This cable tie is suitable for general applications and accommodates cables with a bundle diameter of 1.75 inches.
- Standard, Releasable
- Mounting Type: Screw Mount, Mounting Hole
- Tensile Strength: 50 lbs (22.68 kg)
Product Highlights
The Panduit SSC2S-S10-C cable tie provides a reliable and adjustable solution for securing cables in various applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: SSC2S-S10-C
-
Country of Origin: Malaysia
Technical Specifications
-
Category: Cables, Wires - Management, Cable Ties and Zip Ties
-
Length - Actual: 0.617' (187.96mm, 7.40")
-
Manufacturer: Panduit Corp
-
Mounting Type: Screw Mount, Mounting Hole
-
Series: STA-STRAP
SSC
-
Tensile Strength: 222 lb
-
Packaging: Bulk
-
Material: Polyamide (PA66), Nylon 6/6
-
Part Status: Active
-
Wire/Cable Tie Type: Standard, Releasable
-
Shelf Life: 48 Months
-
Shelf Life Start: Date of Manufacture
-
Bundle Diameter: 1.75" (44.45mm)
-
Base Product Number: SSC2S
-
Width: 0.180" (4.57mm)
-
Length - Approximate: 7.5"
-
ECCN: EAR99
-
Country of Origin: SG - Singapore
-
UPC: 07498352009
-
UNSPSC: 39121703
-
Brand: Sta-Strap
-
Standard: CE, RoHS Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854)
-
Application: General
-
Use With: Cables
-
Screw Size: #30
-
Color Family: Natural
-
Length: 7.35 in.
-
Nominal Length: 7.35 in.
-
Max. Temperature Rating: 185
°F
-
Body Width: 0.18 in
-
Max Operating Temperature: 185 degrees F
-
Min Operating Temperature: -60 degrees C
-
Type: Cable Tie
-
Pkg Qty: 100
-
Sub Brand: Sta-Strap
-
12-Digit UPC: 074983520091
-
Environment: Indoor
-
GTiN: 00074983520091
-
Product UPC: 07498352009
-
Overall Length: 7.35 in
-
Thickness: 0.05 In.
-
Buy American Compliant: Y
-
CA Prop65 Warning: No
-
Standards Met: CE, RoHS Compliant, UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854)
-
Prop 65: No
