Panduit sgabm30-av-c300 Adhesive Cable Tie Mount Pk100

Product Description

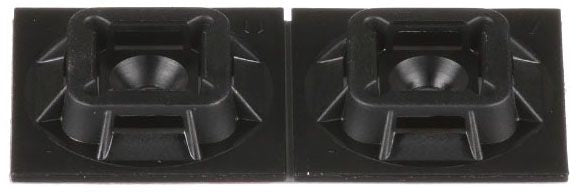

The PANDUIT sgabm30-av-c300 is an acrylic adhesive-backed cable tie mount designed for securing cable ties to surfaces without drilling or fasteners. Made from heat-stabilized, weather-resistant Nylon 6.6, each mount measures 1.12 inches by 1.12 inches by 0.16 inches and attaches via a high-bond acrylic adhesive backing. The mount accepts miniature, intermediate, and standard cross-section cable ties, making it a versatile anchor point for wire management in demanding environments. Each package contains 100 mounts supplied in strips of two. Licensed electricians, industrial maintenance techs, and panel builders commonly install these during wire routing and bundling work.

These mounts are rated for both indoor and outdoor application across a temperature range of -60 to 100 degrees C, making them suitable for harsh environments including automotive, industrial, and outdoor electrical enclosures. They are compatible with the Panduit Super-Grip product line including Super Grip Miniature, Intermediate, and Standard cable ties. The black color and weather-resistant construction support use in UV-exposed or high-humidity locations where standard adhesive mounts would fail prematurely.

Key Features

• High-bond acrylic adhesive backing — no drilling or hardware required for installation
• Heat-stabilized Nylon 6.6 construction resists degradation across a wide temperature range
• Rated for indoor and outdoor use including harsh, high-temperature environments
• Accepts miniature, intermediate, and standard cross-section cable ties
• Supplied in strips of two for consistent spacing and faster installation
• RoHS compliant — suitable for use in regulated electrical and electronics applications

Compatibility

Designed for use with Super Grip Miniature Tie, Super Grip Intermediate Tie, Super Grip Standard Tie, and Miniature, Intermediate, and Standard cross-section cable ties.

Installation Notes

Installation is performed by electricians or maintenance technicians as part of wire management and bundling work. Before applying, clean and dry the mounting surface thoroughly to ensure maximum adhesive bond. Avoid applying to surfaces that are oily, dusty, or below the adhesive manufacturer's minimum application temperature. Refer to applicable NEC guidelines for cable support spacing and securement requirements in electrical installations.

Technical Specifications

• Adhesive Type: High Bond Acrylic
• Material: Heat Stabilized Weather Resistant Nylon 6.6
• Color: Black
• Length: 1.12 inches
• Width: 1.12 inches
• Height: 0.16 inches
• Temperature Range: -60 to 100 degrees C
• Application: Indoor/Outdoor
• Package Quantity: 100
• Certifications: RoHS Compliant
• Country of Origin: USA

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: sgabm30-av-c300
