Panduit SCS4/0-X Pan-Lug SCS Series Butt Splice 4/0-AWG

Product Description

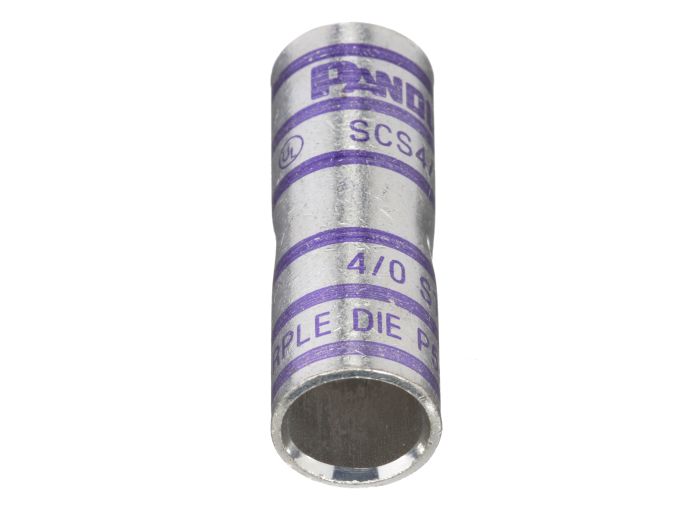

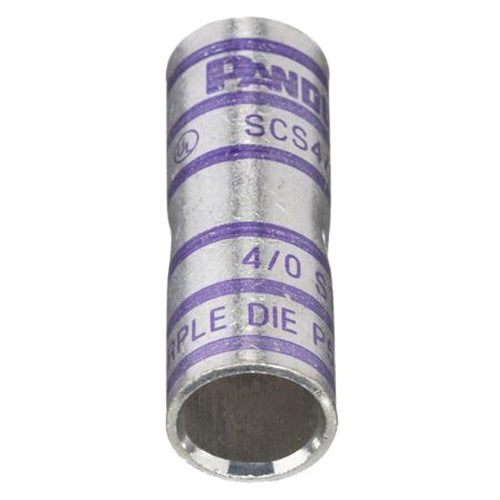

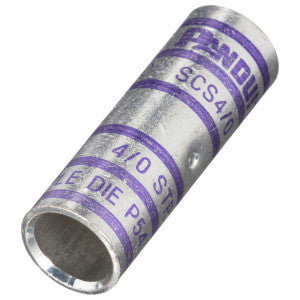

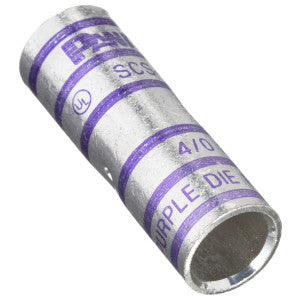

The PANDUIT SCS4/0-X Pan-Lug SCS Series butt splice features sturdy copper construction with tin-plating for corrosion resistance. It has internal wire stops to restrict over-insertion of conductor. Accommodates wire of size 4/0-AWG. It is well suited for high voltage applications up to 35-Kilo-Volts. This butt splice is UL listed, CSA certified and RoHS compliant.

• Applicable for use with stranded copper conductors
• Features copper construction with tin plated finish
• Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection

Product Highlights

The Panduit SCS4/0-X butt splice ensures secure and efficient wire connections for demanding electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: SCS4/0-X
• Country of Origin: Mexico

Technical Specifications

• GTIN: 00074983903405
• UPC: 07498390340
• UNSPSC: 39121449
• RoHS Flag: Yes
• Made In America: Yes
• Country Of Origin: Mexico
• Manufacturer Part Number: SCS4/0-X
• Manufacturer Name: Panduit
• Strip Length: 1 Inch
• Material: Copper
• Finish: Tin Plated
• Conductor Size: 4/0 AWG
• Color Code: Purple
• Brand Name: Panduit
• Barrel Type: Standard
• Barrel Length: 2.12
• Barrel Diameter: 0.71 Inch
• Temperature Rating: 194 deg F (90 deg C)
• Item Name: Butt Splice
• Type: SCS Series
• Voltage Rating: 35 Kilo-Volt
• Standards: UL Listed, CSA Certified, RoHS Compliant
• Termination: Crimp
• Packaging: Bulk
• Insulation: Non-Insulated
• Part Status: Active
• Terminal Type: Butt Splice, Inline, Individual Openings
• Base Product Number: SCS4
• Number of Wire Entries: 2
• ECCN: EAR99
• Insulation Material: Non-Insulated
• Lug Wire Size: 4/0 AWG
• Color Family: Purple
• Length: 2.12 in.
• Product Series: Pan-Lug Compression
• Family Series: Panduit Terminals, Pan-Lug Compression Series
• Description: Copper butt splice, standard barrel, 4/0 AWG wire.
• Wire Size Range: 4/0 AWG
• Number of Conductors: 2
• Approvals: CSA, UL
• Net Weight: 1.055 lbs
