Panduit S4-56R-T TubRingTerm NonIns 4AWG 5/16StudPK200

Product Description

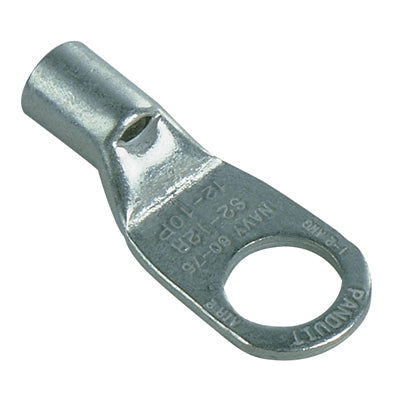

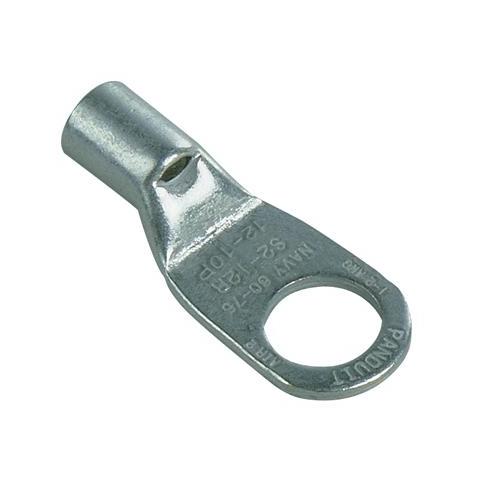

The Panduit S4-56R-T is a tubular ring terminal designed for use with four American Wire Gauge (AWG) wire. It features a 5/16 inch stud size and is non-insulated. This product is available in bulk packaging, making it suitable for various applications.

• Seamless tubular barrel for quality crimping
• Beveled barrel for easy wire insertion
• Inspection window for verifying wire placement

Product Highlights

This terminal is UL and CSA rated for 2000 volts per UL 486A. The recommended maximum operating temperature is 302 degrees Fahrenheit (150 degrees Celsius).

Product Information

Standard Information

• Brand: Panduit
• MPN: S4-56R-T

Technical Specifications

• Cable Size: 4 AWG
• Stud Size: 5/16 inch
• Barrel Size: 0.28 inch ID x 0.38 inch OD x 0.48 inch length
• Voltage Rating: 35 kVAC
• Temperature Rating: 90 degrees Celsius
• Material: Tin-Plated Copper
• Type: 1-Hole Loose Piece Non-Insulated Tubular
